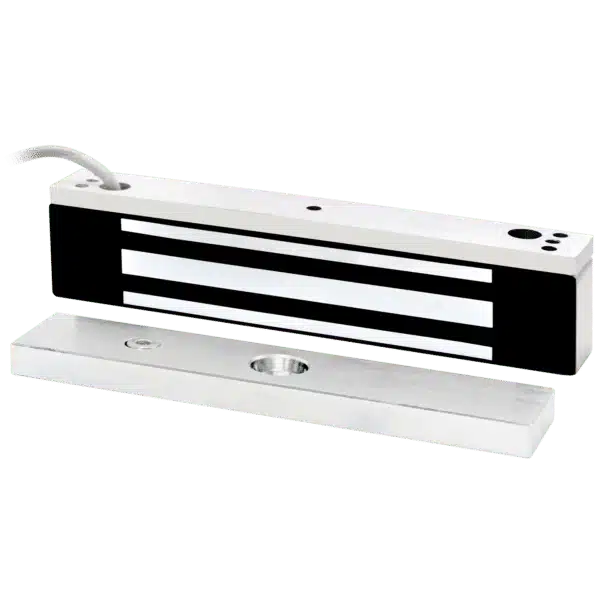

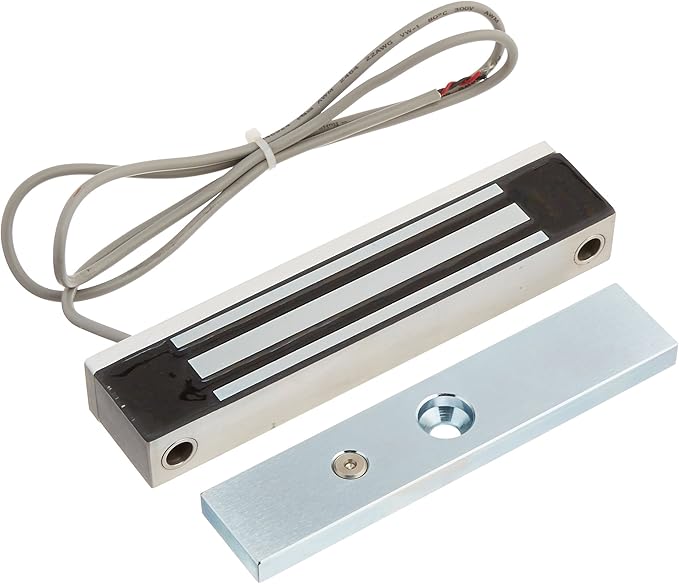

SECO-LARM E-941SA-300 Electromagnetic Lock 300-lb

Product Description

The SECO-LARM E-941SA-300 electromagnetic lock is designed to secure doors against unauthorized access. When powered, it generates a magnetic field that attracts the armature plate on the door. Once power is removed, the lock releases without leaving any residual magnetism, allowing the door to function normally.

• Holding force of three hundred pounds (136 kg)
• Waterproof design with an IP67 rating
• Includes adjustable mounting bracket

Product Highlights

This electromagnetic lock is ideal for security applications and is built for durability.

Product Information

Standard Information

• Brand: SECO-LARM
• MPN: E-941SA-300

Technical Specifications

• Holding Force: 300-lb (136 kg)
• Operating Voltage: 12VDC ±10%
• Current Draw: 315 mA @ 12VDC
• IP Rating: IP67 Waterproof
• Operating Temperature: 14°F ~ 131°F (-10°C ~ 55°C)
• Certification: CE
• Electromagnet Dimensions: 6-3/4 inches x 1 inch x 1-1/4 inches (170 x 23 x 32 mm)
• RoHS Compliance: Yes
• Armature Dimensions: 6 inches x 3/8 inches x 1-1/4 inches (152 x 10 x 32 mm)
• Installation Type: Screw-In
• Recommended Uses For Product: Security
• Manufacturer: Smarthome Technologies
• Item Package Quantity: 1
• Special Features: Keyless
• Batteries Included?: No
• Batteries Required?: No
