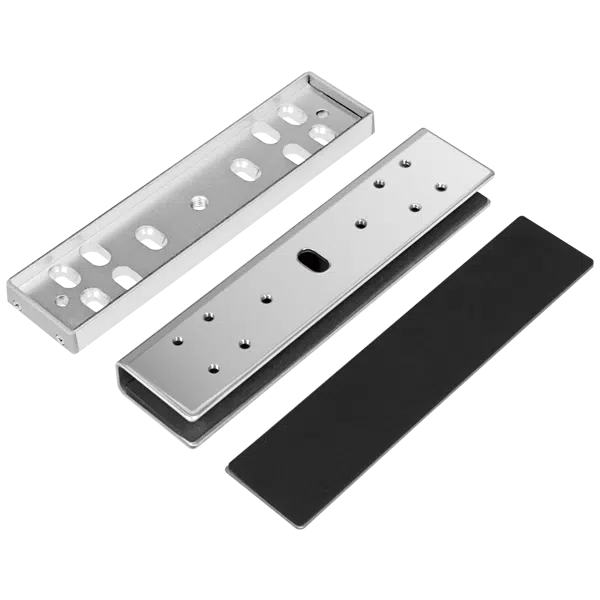

Seco-Larm E-941S-600/UQ Glass Door U-Bracket for 600-lb Series Electromagnetic Locks

Product Description

The SECO-LARM E-941S-600/UQ is a U-bracket designed for mounting to 9~13mm thick glass doors, compatible with all 600-lb series electromagnetic locks. It ensures proper installation of the lock without damaging the door. The bracket includes an armature plate holder and mounting hardware.

• For mounting to 9~13mm thick glass doors
• Armature plate holder and mounting hardware included
• Compatible with all 600-lb Electromagnetic locks

Product Highlights

U-bracket for mounting electromagnetic locks on glass doors. Adjustable for 9-13 mm glass thickness. Mounting hardware included.

Product Information

Standard Information

• Brand: SECO-LARM
• Manufacturer Part Number: E-941S-600/UQ

Technical Specifications

• Special Feature: Adjustable
• Lock Type: Electromagnetic Locks
• Item dimensions L x W x H: 8.3 x 2.3 x 1.6 inches
• Material: Stainless Steel
• Recommended Uses For Product: Glass Door
• Style: Modern
• Number of Pieces: 1
• Shape: U Shape
• Model Name: E-941S-600/UQ
• Manufacturer: Seco-Larm
• Product Dimensions: 8.3 x 2.3 x 1.6 inches
• Finish: US28 SATIN ANODIZED ALUMINUM
• Product Type: ELECTROMAGNET COMPONENT
• Sales Category: ELECTRIC MAGNETIC LOCK
• products_width: 2.13
• products_height: 1.63
• products_depth: 8.19
