Product Description

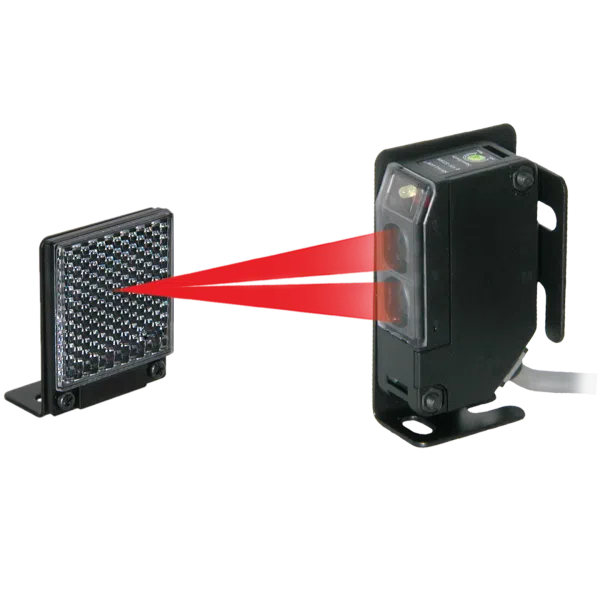

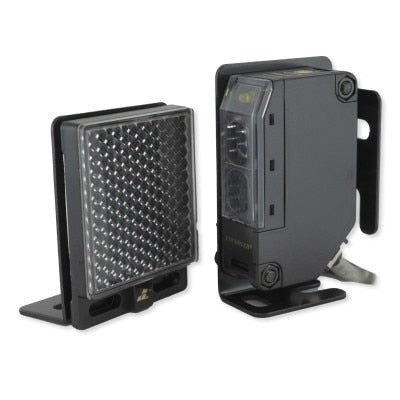

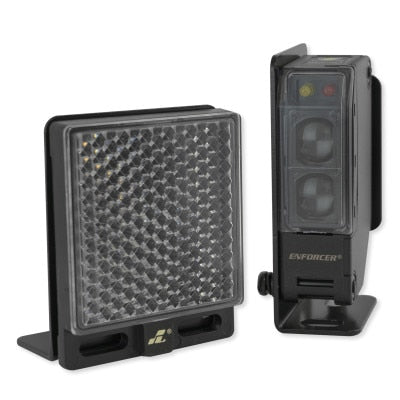

The Seco-Larm E-931-S35RRQ NIR Reflective Photoelectric Sensor is designed for outdoor gates, garage doors, and more. It features weatherproof (IP66) construction for indoor/outdoor use and an adjustable sensing distance. The sensor offers dark ON operation and comes in a compact size. It operates on 12~240VDC or 24~240VAC.
- Suitable for outdoor gates and garage doors
- Features weatherproof (IP66) construction for indoor/outdoor use
- Offers adjustable sensing distance
Product Highlights
This sensor is ideal for various detection applications, including sensing approaching vehicles, entry notification, and industrial automation.
Product Information
Standard Information
-
Brand: Seco-Larm
-
Manufacturer Part Number: E-931-S35RRQ
-
Country of Origin: USA
Technical Specifications
-
Sensing Range: 0.5' to 35' (0.1 - 11m)
-
Current Draw: Standby- 12VDC@20mA; 24VDC@10mA, Active- 12VDC@40mA; 24VDC@20mA
-
Operating Voltage: 12~240VDC or 24~240VAC
-
Response Time: 10ms (Max)
-
Light Source: IR LED
-
LEDs: Yellow: Standby
-
Output: SPDT Relay Output
-
Switching Capacity: 250VAC/1A, 30VDC/2A
-
Enclosure: IP66 Waterproof
-
Operating Temperature: 55 Degrees Celsius
-
Type: NIR Reflective Photoelectric Sensor
-
Reaction time: 10ms (max.)
-
LEDs – Red: Active
-
Trigger Output: SPDT Relay output
-
Ambient Temperature: -4 - 131 F (-20 - 55 C)
-
Mounting Brackets for Sensor and Reflector: Included
-
Power Source: Electric
-
Maximum Range: 11 Meters
-
Compatible Devices: Garage Door Opener, Security System, Industrial Automation Equipment
-
Recommended Uses For Product: Garage, Outdoors gates
-
Model Number: E-931-S35RRQ
-
Voltage Supply: 12-240 VDC or 24-240 VAC
-
Manufacturer Number: E-931-S35RRQ
-
UPC: 676544000495
-
Mounting: Wall Mounted
-
Features: Bracket, Waterproof
