Seco 74077627 Milling Insert XOMX090331TR-ME06 F40M Carbide

Product Description

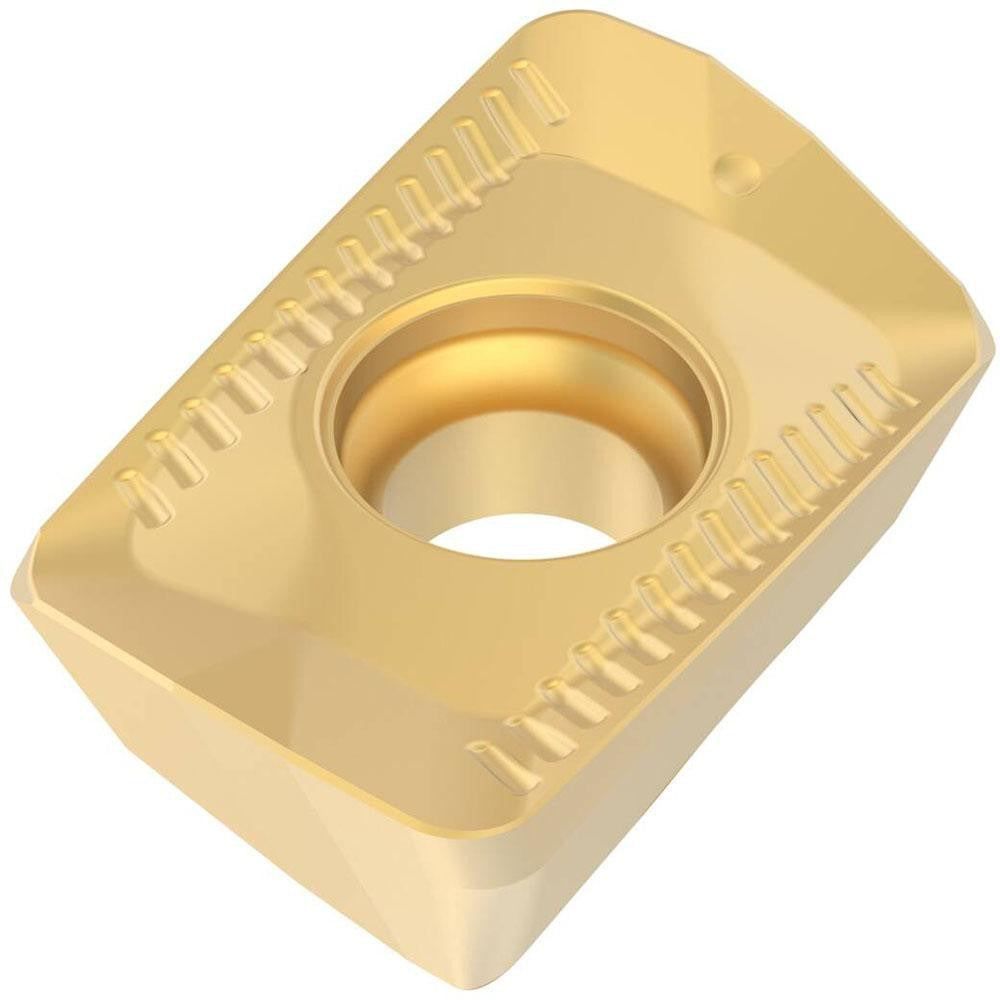

The SECO 74077627 is a solid carbide milling insert carrying the ANSI and ISO designation XOMX090331TR-ME06, manufactured to F40M fine-grain grade with a PVD-applied TiAlN plus TiN dual-layer coating. The insert follows a parallelogram shape with a 90-degree included angle, a positive 22.5-degree rake angle, and a 15-degree relief angle. The cutting edge style is T-Land with the ME06 chip breaker geometry. Two right-hand cutting edges are available per insert. Maximum depth of cut reaches 0.3543 inches, and the cutting edge effective length is also 0.3543 inches. Licensed machinists and CNC tooling technicians install these inserts in compatible indexable milling cutter bodies.

This insert is suited for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. Primary material codes are P, K, and S; secondary codes are K and N. The ME06 chip breaker geometry supports a wide range of cutting conditions from light finishing to moderate roughing passes on the listed workpiece materials. It is designed for use in SECO cutter series R217, 69-09, and R220.69-09 compatible bodies, and seats via screw-holding method in single-sided configuration.

Key Features

• F40M fine-grain solid carbide substrate with PVD TiAlN plus TiN dual-layer coating for extended wear resistance
• Positive 22.5-degree rake with T-Land cutting edge style reduces cutting forces and protects edge on interrupted cuts
• ME06 chip breaker geometry effective across a broad material range including superalloys and titanium
• 2 right-hand cutting edges per insert; single-sided design
• Maximum depth of cut 0.3543 inches with effective cutting edge length of 0.3543 inches
• Screw-held mounting in XOMX-09 series insert pockets; compatible with cutter series R217, 69-09, and R220.69-09

Compatibility

Designed for use with SECO cutter series R217, 69-09, and R220.69-09 compatible indexable milling cutter bodies accepting XOMX-09 series inserts. ANSI and ISO code XOMX090331TR-ME06 applies.

Installation Notes

Installation is performed by machinists or CNC tooling technicians. Power down and lock out the machine spindle before seating or indexing inserts. Use the correct torx or hex key to torque the clamping screw to the cutter body manufacturer specification — do not overtighten, as this can crack the carbide substrate. Inspect the insert pocket seating surface for chips or debris before seating a new insert.
