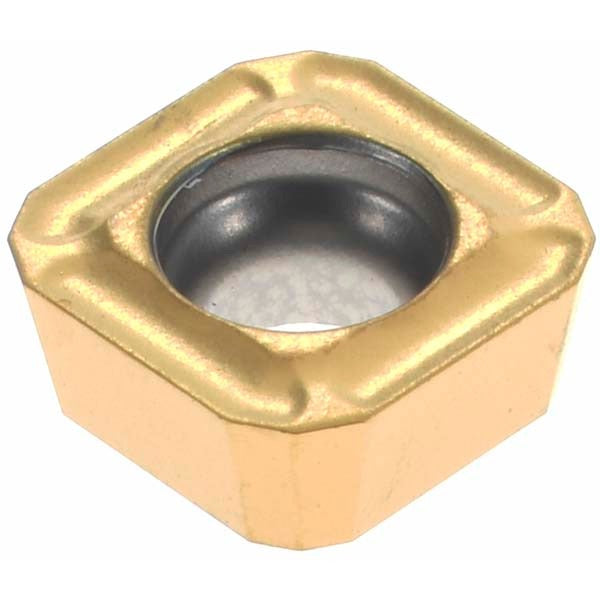

Seco 74077370 SPGX05C1 Indexable Drill Insert Carbide

Product Description

The SECO 74077370 is a solid carbide indexable drill insert in the SPGX05C1 T400D configuration, designed for use in indexable drill bodies within the Perfomax series. The insert features a square shape with a 90-degree included angle and an 11-degree relief angle, providing positive cutting geometry suited for a wide range of workpiece materials. The PVD-applied TiAlN and TiN dual coating improves wear resistance and heat tolerance during drilling operations. With a 0.2189-inch (5.56 mm) inscribed circle and a thickness of 0.094 inches, this insert is sized for the 05 insert size code. Licensed machinists and CNC operators working in production or job-shop environments are the typical installers.

This insert is rated for universal application across multiple material grades, including cast iron (K), non-ferrous metals (N), steel (P), stainless and heat-resistant alloys (S), hardened materials (H), and general-purpose medium-alloy materials (M). It is intended for use in compatible Perfomax series indexable drill bodies where the SPGX insert style and 05 size code are specified. It is sold individually with a minimum order quantity of 10 units.

Key Features

• Solid carbide construction with PVD-applied TiAlN and TiN dual coating for extended tool life
• SPGX insert style with 90-degree included angle and 11-degree relief angle for positive cutting geometry
• 5.56 mm (0.2189 inches) inscribed circle, insert size code 05
• C1 chipbreaker geometry designed for chip control across universal workpiece materials
• Compatible with cast iron, non-ferrous, steel, stainless, heat-resistant alloys, and hardened materials
• Part of the Perfomax series for use in matching indexable drill body platforms

Compatibility

Designed for use in Perfomax series indexable drill bodies that accept the SPGX insert style in the 05 size code. Primary workpiece material codes H, K, M, N, P, and S are supported per manufacturer grade T400D designation.

Installation Notes

Insert seating and torque should be performed by a qualified machinist or CNC tooling technician per the drill body manufacturer specifications. Ensure the drill body pocket is clean and free of chips or debris before seating the insert. Power down and lock out the machine spindle before changing inserts. Do not exceed the recommended cutting parameters published by SECO for the T400D grade and target workpiece material.
