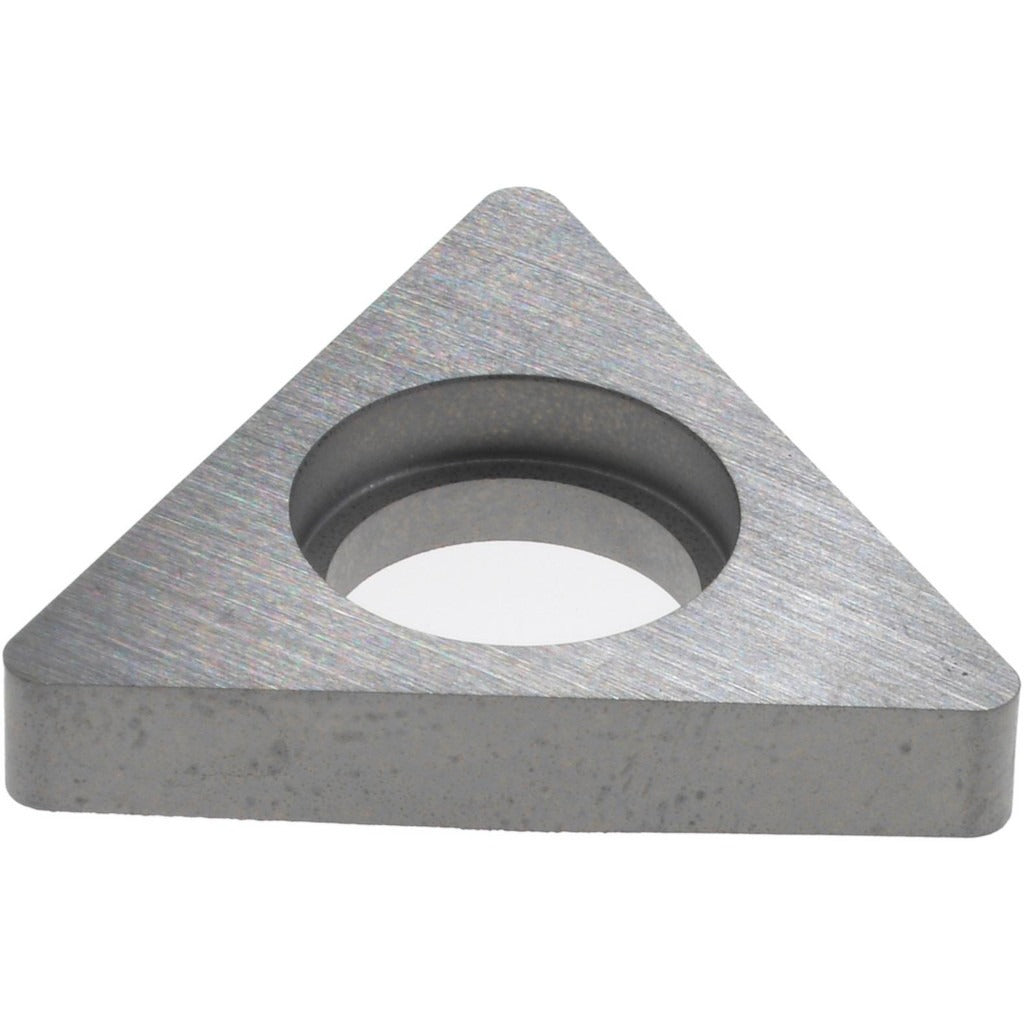

Seco 74072241 Indexable Toolholder Anvil 0.625 in Size 5

Product Description

The SECO 74072241 is a replacement anvil designed for indexable toolholders. The anvil seats beneath the cutting insert in an indexable tool assembly, providing a stable bearing surface that protects the toolholder pocket from cutting forces and insert seating damage. This component is sized for a 0.625 inch insert inscribed circle and carries a toolholder insert size code of 5. It is compatible with the S-58 anvil screw. Machinists and tool crib technicians working with indexable turning, boring, or milling setups install this part during routine insert changes or toolholder reconditioning.

This anvil is suited for use in production machining environments where indexable toolholders are regularly serviced. Replacing worn or damaged anvils restores proper insert seating geometry and prevents premature toolholder body wear. The part is sold individually and is typically ordered in multiples of 10 for shop stock or toolroom inventory. It is identified under industry standard number 19275 and UNSPSC code 23242100.

Key Features

• Sized for 0.625 inch insert inscribed circle for precise insert support
• Toolholder insert size code 5 for straightforward toolholder matching
• Compatible with S-58 anvil screw for secure assembly
• Protects toolholder pocket from impact and wear during cutting operations
• Sold as individual unit, orderable in multiples of 10 for stock replenishment

Compatibility

Designed as an OEM-style replacement anvil for indexable toolholders requiring a 0.625 inch insert inscribed circle with size code 5 and S-58 anvil screw compatibility.

Installation Notes

Installation is performed by machinists or tool crib personnel during toolholder maintenance. Power down and secure any machine spindle before servicing toolholders. Remove the existing anvil screw and worn anvil, seat the replacement anvil flush in the pocket, and reinstall the S-58 anvil screw to the toolholder manufacturer's specified procedure. Inspect the toolholder pocket for damage before installing the new anvil.
