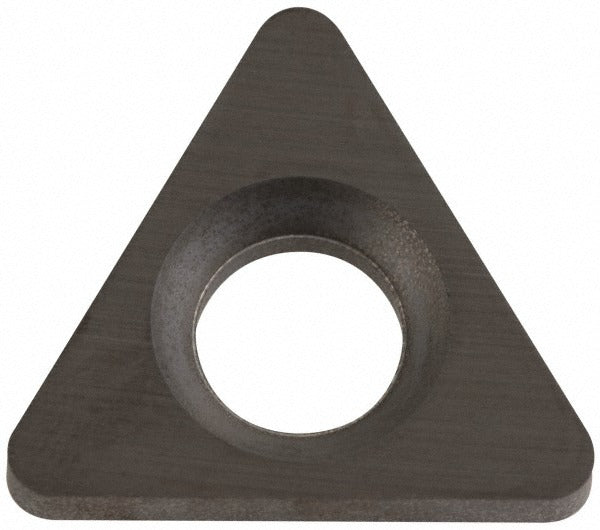

Seco 74072234 Anvil Indexable Toolholder 0.5 in Size 4

Product Description

The SECO 74072234 is an anvil designed for use with indexable toolholders in metal cutting and machining operations. Anvils seat beneath the cutting insert in the toolholder pocket, providing a stable, hardened bearing surface that protects the pocket from wear and absorbs cutting forces during turning, milling, or boring. This anvil is sized for a 0.5 inch insert inscribed circle and carries a Toolholder Insert Size Code of 4. It is compatible with the S-46 anvil screw for secure retention. The thickness is 0.125 inches. This component is typically installed by machinists, tool crib technicians, or CNC setup personnel maintaining indexable toolholder assemblies.

This anvil is suited for indexable toolholder applications in production machining environments, including CNC turning centers, boring bars, and lathe tooling setups. It is sized for inserts with a 0.5 inch inscribed circle, which is a common sizing found in medium-duty turning and facing operations. The industry standard reference for this component is 19655. Sold individually, with a minimum order quantity of 10 pieces per order.

Key Features

• Sized for 0.5 inch insert inscribed circle for precise insert seating
• Toolholder Insert Size Code 4 for straightforward toolholder matching
• Compatible with S-46 anvil screw for secure assembly
• Thickness of 0.125 inches for consistent pocket depth
• Industry Standard Number 19655 for cross-reference identification

Compatibility

Designed for indexable toolholders requiring a 0.5 inch inscribed circle anvil with Insert Size Code 4 and S-46 anvil screw compatibility. Verify toolholder pocket specifications before installation to confirm correct anvil fit.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Before replacing an anvil, ensure the machine is fully powered down and the toolholder is removed from the turret or spindle. Inspect the toolholder pocket for wear or damage before seating the new anvil. Secure the anvil using the compatible S-46 anvil screw and verify the insert seats flush before returning the toolholder to service.
