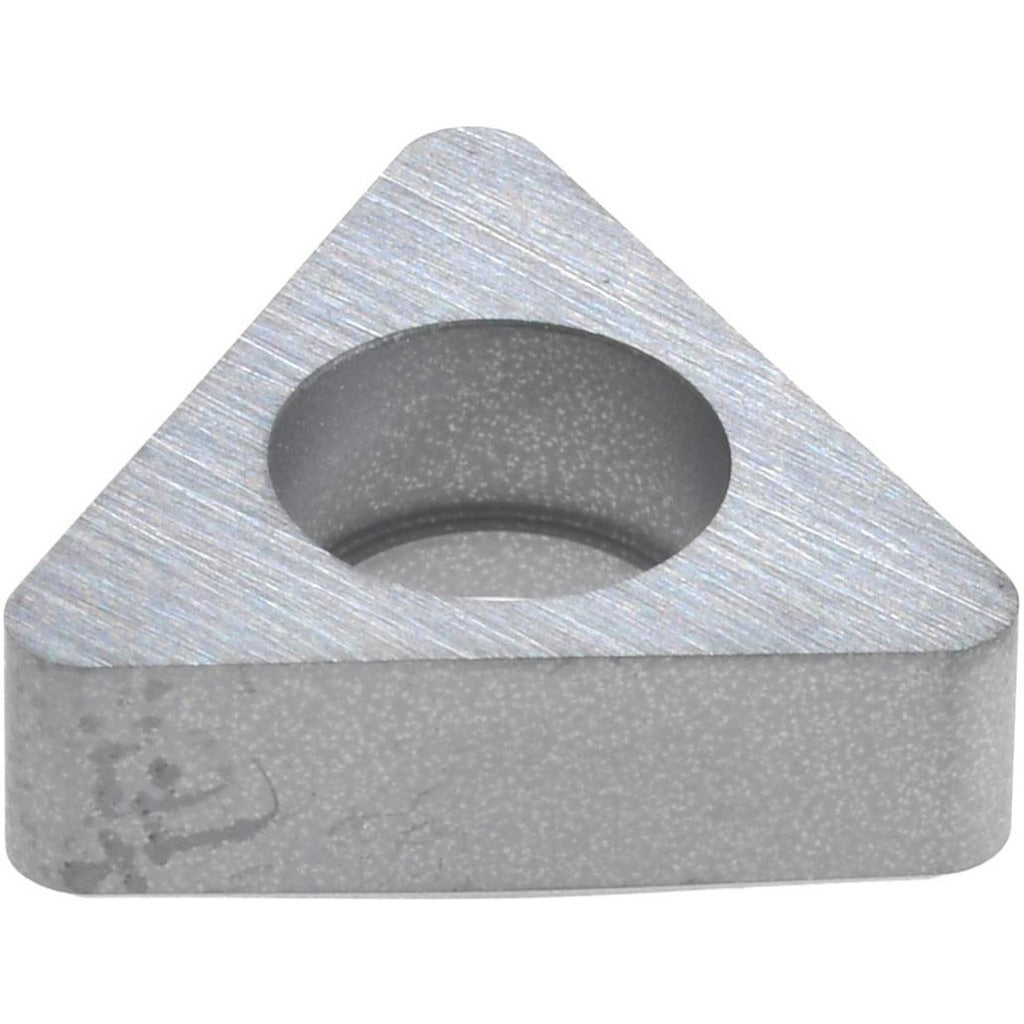

Seco 74072232 Anvil Indexable 0.375 Inch Insert

Product Description

The SECO 74072232 is an anvil designed for indexable toolholders, providing a precision seating surface that supports and protects the toolholder pocket during cutting operations. Anvils sit beneath the indexable insert and absorb cutting forces, extending pocket life and maintaining accurate insert positioning. This anvil is sized for a 0.375-inch insert inscribed circle and corresponds to toolholder insert size code 3. It is compatible with anvil screw S-34 and conforms to industry standard number 19230. Installation and replacement are performed by machinists and toolroom technicians as part of routine indexable tooling maintenance.

This anvil is suited for use in indexable milling, turning, or boring toolholders that accept a 0.375-inch inscribed circle insert. It is a direct-fit component for toolholders requiring size code 3 anvil geometry. Typical applications include production machining environments where indexable carbide or cermet inserts are run at high cycle rates, making periodic anvil inspection and replacement part of standard tooling upkeep. Refer to the toolholder manufacturer documentation to confirm anvil position and screw torque requirements before installation.

Key Features

• Sized for 0.375-inch insert inscribed circle with toolholder insert size code 3
• Compatible with anvil screw S-34 for secure pocket retention
• Conforms to industry standard number 19230
• Protects toolholder pocket from direct insert contact during cutting
• Sold individually; order minimum of 10 units per order

Compatibility

Designed for indexable toolholders requiring a size code 3 anvil with a 0.375-inch insert inscribed circle and anvil screw S-34 compatibility. Verify toolholder documentation for confirmed fitment before ordering.

Installation Notes

Anvil replacement is performed by machinists or toolroom personnel with the machine powered down and all energy sources locked out per applicable safety procedures. Remove the existing anvil screw and worn anvil, seat the replacement anvil flush in the pocket, and reinstall using the specified anvil screw. Do not exceed the screw torque value specified in the toolholder manufacturer documentation. Inspect the toolholder pocket for wear or damage before installing a new anvil.
