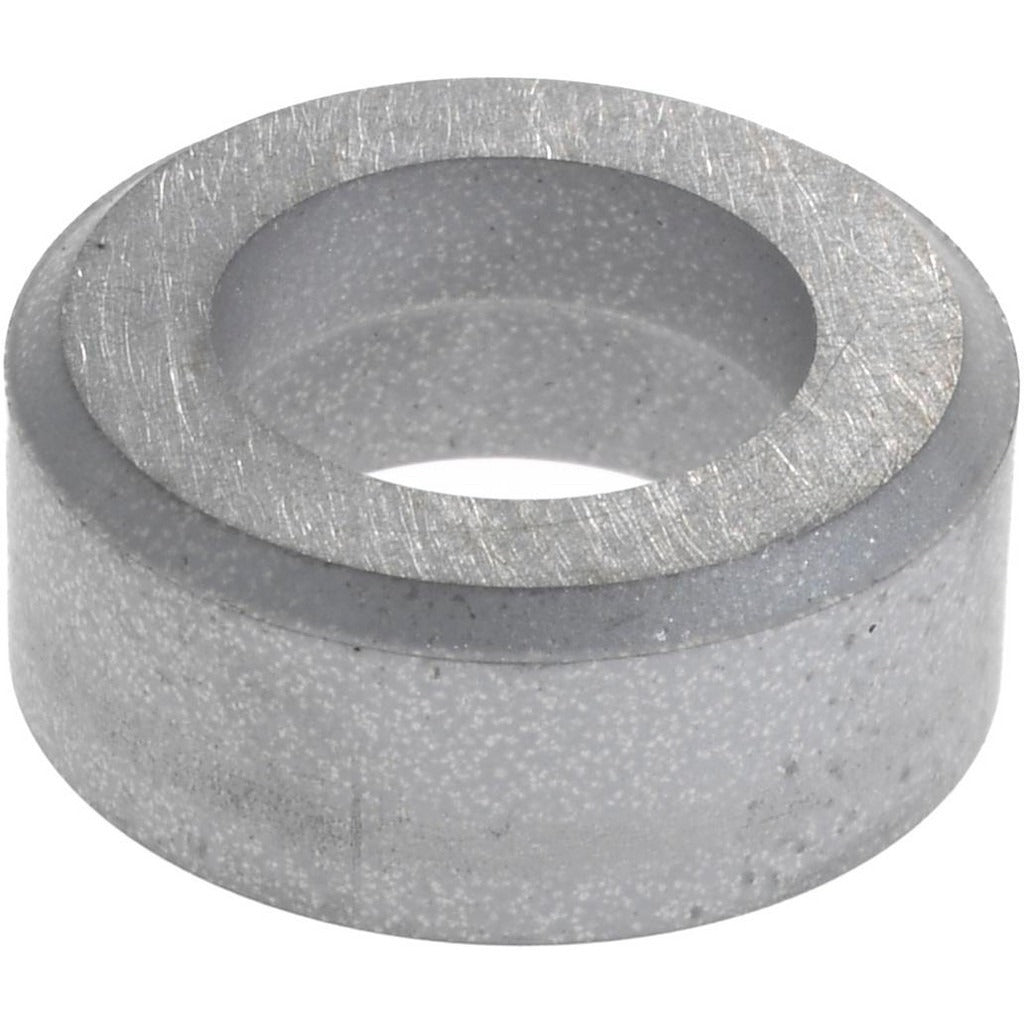

Seco 74072202 Anvil Indexable Toolholder 0.5 in Size 4

Product Description

The SECO 74072202 is a precision anvil designed for use with indexable toolholders in metal cutting and machining applications. Anvils serve as the seating surface beneath the cutting insert, distributing cutting forces and protecting the toolholder pocket from wear and damage during turning, boring, or milling operations. This anvil accommodates a 0.5 inch insert inscribed circle, corresponding to toolholder insert size code 4, and is compatible with S-46 anvil screws. It is typically installed and replaced by machinists, toolroom technicians, and CNC setup personnel as part of routine toolholder maintenance.

This anvil is suited for use in toolholders that accept 0.5 inch inscribed circle indexable inserts in size code 4 configurations. It fits into standard toolholder pockets where the anvil sits between the insert and the steel pocket floor, absorbing impact loads and preventing pocket damage during interrupted cuts or heavy material removal. Industry standard number 19160 and UNSPSC code 23242100 apply to this component, which is sold individually with a minimum order quantity of 10 units.

Key Features

• Fits 0.5 inch insert inscribed circle indexable toolholders
• Toolholder insert size code 4 compatibility
• Designed for use with S-46 anvil screws
• Protects toolholder pocket from cutting force damage
• Industry standard number 19160 for cross-reference identification
• Sold per piece with minimum order quantity of 10

Compatibility

Designed for indexable toolholders accepting a 0.5 inch inscribed circle insert at size code 4, used with S-46 anvil screws. Refer to the SECO toolholder pocket specification for confirmed fitment before ordering.

Installation Notes

Anvil replacement is performed by machinists or toolroom technicians as part of indexable toolholder servicing. Always power down and lock out the machine before accessing the toolholder pocket. Remove the clamping screw and insert before extracting the worn anvil. Seat the replacement anvil fully and flat in the pocket before reinstalling the insert and clamping hardware to the manufacturer torque specification found in the toolholder documentation.
