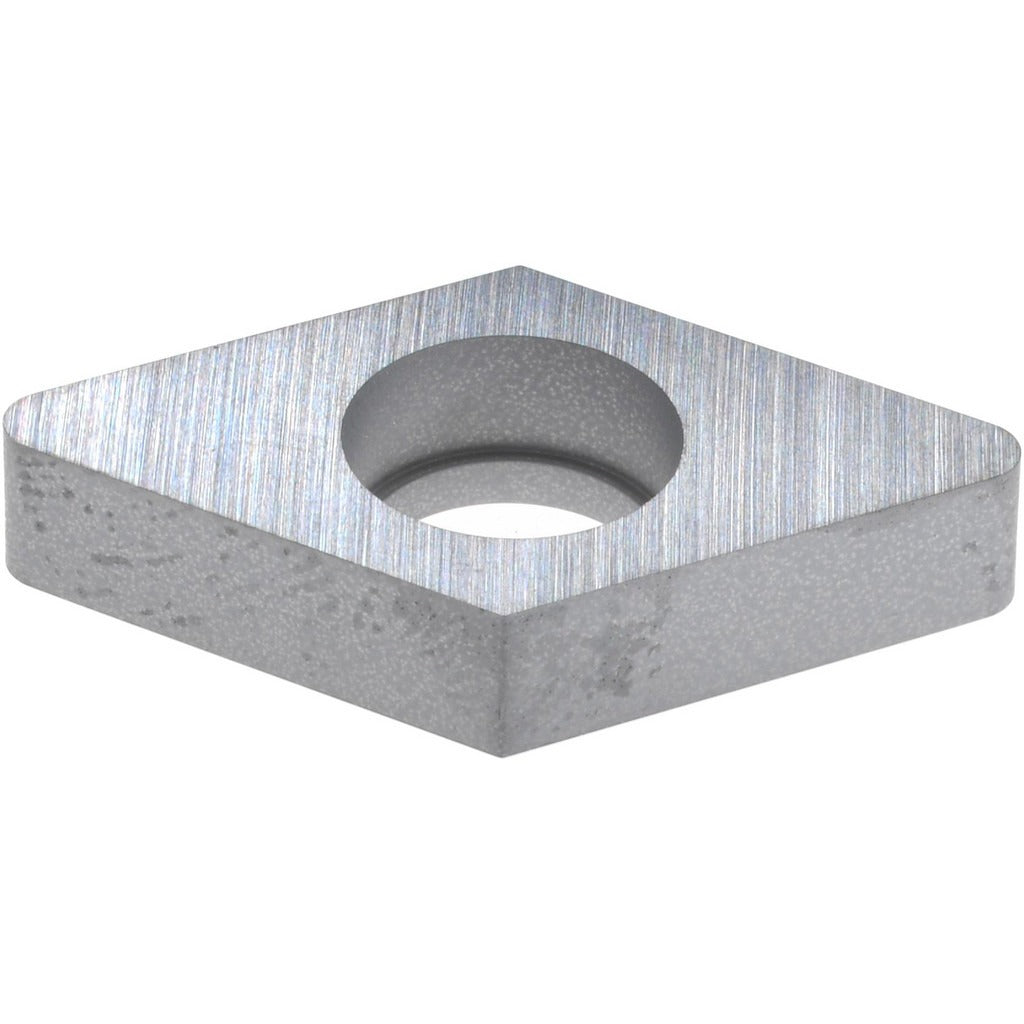

Seco 74072198 Anvil Indexable Toolholder 0.5 Inch

Product Description

The SECO 74072198 is a replacement anvil designed for indexable toolholders used in metal cutting and machining operations. The anvil seats beneath the cutting insert, providing a stable support surface that protects the toolholder pocket from damage during cuts. This component is sized for a 0.5 inch insert inscribed circle and carries a thickness of 3/16 inch. It is compatible with anvil screw S-46 and is identified by industry standard number 41189. Machinists, tool crib technicians, and CNC setup personnel handle this part during routine insert changes and toolholder maintenance.

This anvil is suited for use in indexable turning, boring, or milling toolholders that accept a 0.5 inch (IC) insert. It corresponds to toolholder insert size codes 4, 20-4, and 24-4, covering a range of SECO toolholder bodies that require this support component. It is a direct-replacement part sold individually, with a minimum order quantity of 10 units, making it practical to stock for ongoing production or maintenance programs.

Key Features

• 0.5 inch insert inscribed circle sizing for precise insert support
• 3/16 inch thickness for consistent seating depth in compatible toolholder pockets
• Compatible with anvil screw S-46 for secure fastening
• Fits toolholder insert size codes 4, 20-4, and 24-4
• Industry standard number 41189 for cross-reference sourcing
• Sold individually; minimum order quantity of 10 units

Compatibility

Designed for indexable toolholders accepting a 0.5 inch IC insert with toolholder insert size codes 4, 20-4, and 24-4, using anvil screw S-46. Industry standard number 41189 applies.

Installation Notes

Installation is performed by machinists or tool crib technicians during toolholder servicing or insert changes. Ensure the machine spindle is fully stopped and the toolholder is removed from the turret or spindle before replacing the anvil. Seat the anvil flat in the pocket before placing the insert, and secure with the correct anvil screw (S-46) to the manufacturer-specified seating condition. Inspect the pocket for wear or debris before installing a new anvil.
