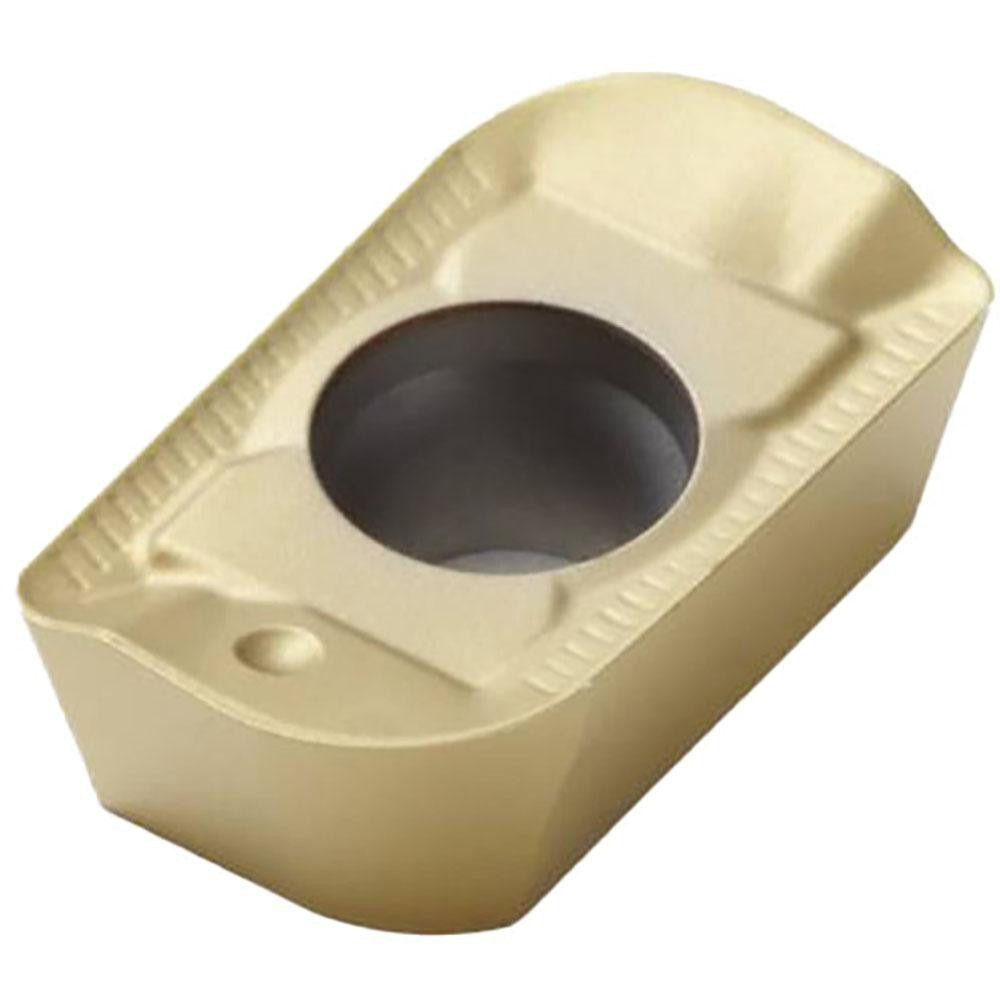

Seco 74069375 Milling Insert APKX160416R-ME12 F40M Carbide

Product Description

The SECO 74069375 is a solid carbide milling insert carrying the ANSI/ISO designation APKX160416R-ME12. It is a right-hand, single-sided parallelogram-style insert in the APKX-16 series, coated with TiAlN and TiN via a PVD process in manufacturer grade F40M. The ME12 chip breaker geometry features a positive 24-degree rake angle and honed cutting edge style, producing clean chip control across a wide range of workpiece materials. With a maximum depth of cut of 0.6220 inches and a cutting edge effective length of 0.6598 inches, this insert is suited for productive milling passes in demanding applications. Two cutting edges are available per insert. Fine-grain carbide substrate supports edge integrity at elevated cutting speeds.

This insert is designed for milling operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, and titanium. The positive rake geometry and PVD coating combination reduce cutting forces and heat buildup, making it suitable for both roughing and semi-finishing passes. It is screw-held in compatible milling cutter bodies and intended for use by machinists and tooling specialists in production machining environments, job shops, and precision manufacturing operations.

Key Features

• Solid carbide fine-grain substrate with TiAlN and TiN PVD coating in manufacturer grade F40M
• Parallelogram insert shape (APKX style) with 85-degree included angle and 11-degree relief angle
• Positive 24-degree rake angle with ME12 chip breaker for effective chip control
• Honed cutting edge style with 0.0630-inch corner radius for controlled edge strength
• Right-hand cut, single-sided, screw-held mounting method
• Maximum depth of cut 0.6220 inches with effective cutting edge length of 0.6598 inches
• Meets ISO standards; ANSI code APKX160416R-ME12.055

Compatibility

Compatible with SECO cutter series R217.69-16 and R220.69-16 milling cutter bodies as specified by the manufacturer.

Installation Notes

Installation is performed by machinists or tooling technicians using appropriate torx or hex drive tooling per the cutter body manufacturer specifications. Always power down and lock out the machine spindle before seating or replacing inserts. Ensure the insert pocket and seating surfaces are clean and free of chips or debris before securing the clamping screw. Do not exceed the cutter body rated speed or depth-of-cut parameters for the selected insert grade.
