Seco 74017234 Milling Insert ACET150612TR-M14 T25M Carbide

Product Description

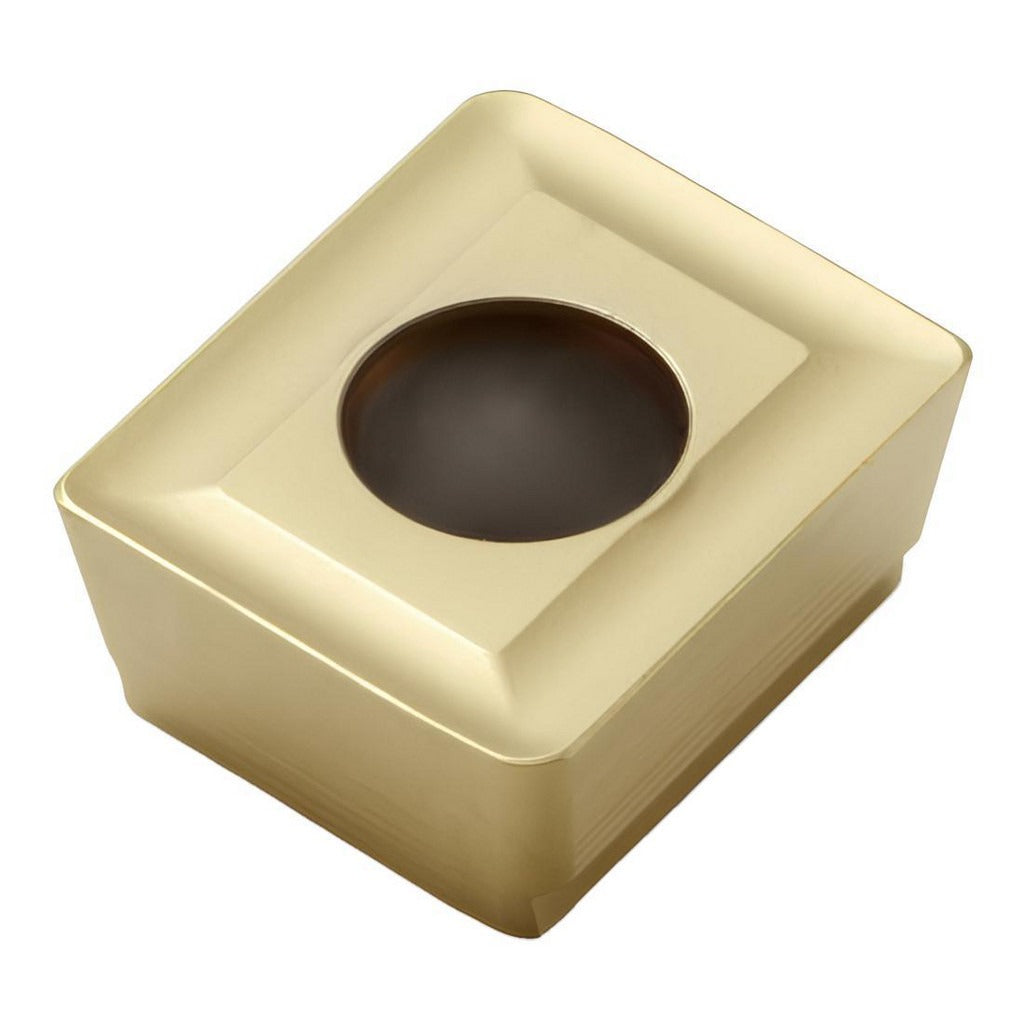

The SECO 74017234 is a solid carbide milling insert carrying ANSI and ISO designation ACET150612TR-M14, manufactured in the T25M medium-grain carbide grade with a CVD-applied TiCN coating. It is a single-sided, right-hand parallelogram insert in the ACET-15 series, featuring a positive rake angle of 15 degrees, a T-Land cutting edge style, and two cutting edges per insert. With a 7-degree relief angle and a corner radius of 3/64 inch (0.0472 inches), this insert is engineered for milling applications in steel, stainless steel, superalloys, and titanium. It is installed by machinists and tooling technicians using a screw-holding method in compatible cutter bodies.

This insert is designed for use in face milling, shoulder milling, and general milling operations on steel, stainless steel, superalloys, and titanium workpieces. The T25M grade with TiCN CVD coating provides wear resistance and thermal stability suited to medium-grain cutting demands in these material categories. The M14 chip breaker geometry supports controlled chip formation across a range of cutting conditions. Compatible cutter series include R220.69-15H, R217.59-12, R220.59-12, R217.81, and R220.81, as specified by the manufacturer. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• T25M medium-grain solid carbide grade with CVD TiCN coating for wear resistance in steel and superalloy applications
• Positive rake angle (15 degrees) with T-Land cutting edge style for controlled cutting forces
• Two cutting edges per insert, single-sided, right-hand orientation
• M14 chip breaker geometry for reliable chip control in medium-duty milling
• Screw-mounted insert holding for secure, repeatable seating in compatible cutter bodies
• Maximum depth of cut of 0.5827 inches with an effective cutting edge length of 0.5906 inches

Compatibility

Compatible cutter series as stated by the manufacturer: R220.69-15H, R217.59-12, R220.59-12, R217.81, and R220.81. Insert conforms to ANSI and ISO code ACET150612TR-M14 within the ACET-15 series. Material application covers Steel (P), Stainless Steel (M), and Superalloys and Titanium (S) workpiece categories.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before removing or seating any insert. Seat the insert fully against the pocket faces before torquing the clamping screw; do not force an insert that does not seat cleanly, as this indicates a worn or contaminated pocket. Inspect the cutter body pocket and screw threads for damage each time inserts are changed.
