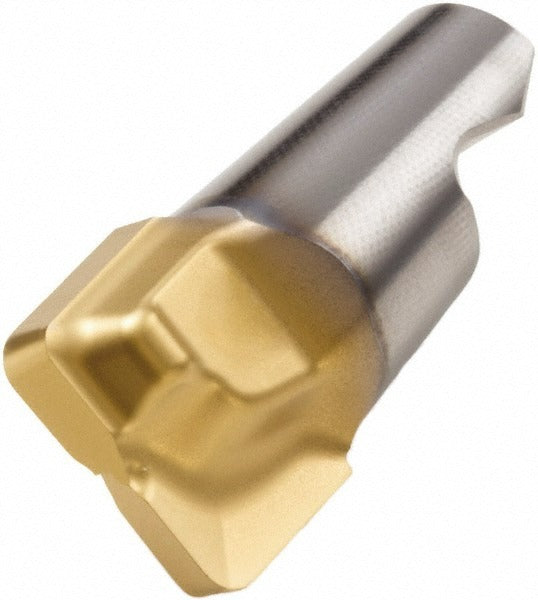

Seco 74017037 Milling Tip 0.630 in 2 Flute Tialn Carbide MM16

Product Description

The SECO 74017037 is a carbide end replaceable milling tip designed for the Minimaster MM16 modular milling system. It features a 0.630-inch cutting diameter, a 2-flute right-hand configuration, and a TiAlN PVD coating that extends tool life in demanding cutting conditions. The MD07 chipbreaker geometry supports chip control during slotting operations. With a 90-degree lead angle and zero helix angle, this tip is engineered specifically for slotting applications where full-width radial engagement is required. Licensed HVAC techs, electricians, and machinists who run modular milling systems will recognize this as a direct-fit interchangeable tip for MM16-compatible holders.

This milling tip is suited for use in CNC milling operations across a broad range of workpiece materials, including steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials. The T60M grade carbide substrate combined with TiAlN coating makes it appropriate for both roughing and finishing passes in slotting scenarios. It is typically installed by machining professionals in job shop, aerospace, and industrial manufacturing environments where modular tooling systems are standard.

Key Features

• 0.630-inch cutting diameter with matching 0.630-inch cutting width for full-slot engagement
• 2-flute, right-hand cut geometry optimized for slotting operations
• TiAlN PVD coating for heat resistance and extended tool life across multiple workpiece materials
• MD07 chipbreaker for controlled chip evacuation during slotting
• T60M carbide grade (material grade C5) suitable for steel, stainless steel, cast iron, non-ferrous, superalloys, titanium, and hard materials
• 0.031-inch corner radius for controlled edge engagement and reduced chipping risk

Compatibility

Designed as an OEM-style interchangeable tip for the SECO Minimaster MM16 modular milling system, compatible with MM16 series holders accepting the 0.630-R2 insert size. The full tip designation is MM16-0.630-R2-MD07 per ANSI standards.

Installation Notes

This replaceable tip is installed and serviced by machining professionals using the torque tool specified by the MM16 holder manufacturer. Power down and lock out the spindle before tip removal or installation. Inspect the holder pocket for wear or debris before seating the new tip. Follow the machine tool builder and tooling manufacturer guidelines for proper clamping procedure to ensure secure seating and accurate runout.
