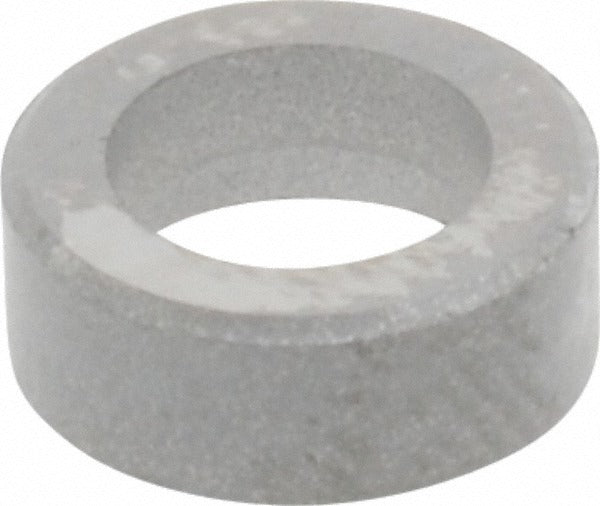

Seco 74016102 Anvil for Indexable Inserts 0.5 in

Product Description

The SECO 74016102 is a replacement anvil designed for indexable cutting tool assemblies. The anvil sits beneath the indexable insert in the toolholder pocket, providing a solid, stable seating surface that protects the pocket from damage during cutting operations. This component is sized for a 0.5 inch insert inscribed circle and has a thickness of 1/8 inch. It is compatible with anvil screw CA3510 and anvil key 9/64 inch SMS875. Installation is performed by machinists and tool crib technicians during insert changes or toolholder rebuilds.

This anvil is intended for use in indexable turning, boring, or milling toolholders that accept a size 10 insert per the toolholder insert size code designation. It corresponds to industry standard number 16102. The part is suited for shop environments running production or precision machining where protecting toolholder pockets from insert-related wear is a maintenance priority.

Key Features

• Sized for 0.5 inch insert inscribed circle for consistent insert seating
• Thickness of 1/8 inch for proper pocket depth alignment
• Compatible with anvil screw CA3510 for secure fastening
• Compatible with anvil key 9/64 inch SMS875 for correct installation torque
• Toolholder insert size code 10 designation for straightforward cross-reference
• Industry standard number 16102 for easy identification and sourcing

Compatibility

Designed for indexable toolholders accepting a size 10 insert with a 0.5 inch inscribed circle. Compatible with anvil screw CA3510 and anvil key 9/64 inch SMS875 as specified by the manufacturer.

Installation Notes

Installation is performed by a machinist or tool crib technician during routine insert maintenance. Remove the indexable insert and anvil screw before replacing the anvil. Use the specified anvil key 9/64 inch SMS875 and screw CA3510 when reassembling to ensure proper seating and clamping force. Do not substitute fasteners or keys not specified for this toolholder pocket.
