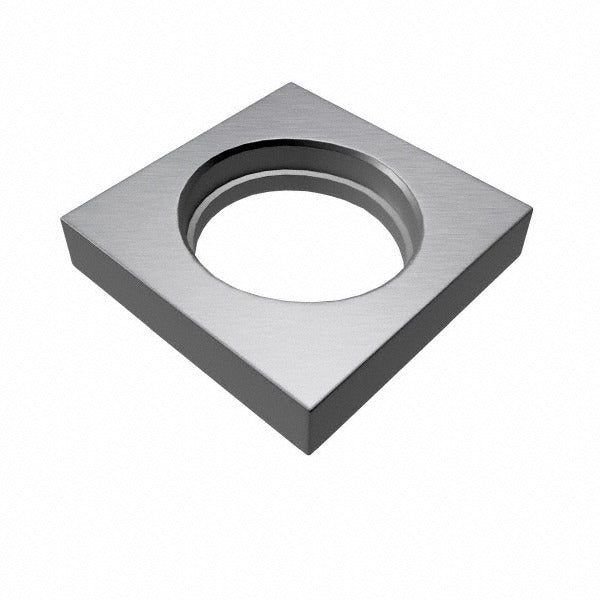

Seco 74016092 Anvil for Indexables 0.5 Inch Ic Size 4

Product Description

The SECO 74016092 is an anvil designed for use with indexable insert toolholders. It serves as the seating component beneath a cutting insert, providing a stable and accurate support surface that protects the toolholder pocket from wear and impact during machining operations. The anvil is sized for a 0.5 inch insert inscribed circle and carries a toolholder insert size code of 4. At 0.125 inches thick, it is a precision component intended for installation by machinists and toolroom technicians working with SECO indexable tooling systems.

This anvil is used in metal cutting applications where indexable inserts are seated in a toolholder pocket. It is appropriate for turning, boring, and similar operations in both production and job-shop environments. The anvil is compatible with anvil screw CA5008 and anvil key 5 SMS795, making it straightforward to source matching hardware during toolholder maintenance or rebuild. It is sold individually and is suited for use wherever a replacement seating anvil is required in a size 4 indexable toolholder.

Key Features

• 0.5 inch insert inscribed circle sizing for consistent insert seating
• Toolholder insert size code 4 for direct toolholder compatibility
• 0.125 inch thickness provides precise pocket depth support
• Compatible anvil screw: CA5008
• Compatible anvil key: 5 SMS795
• Sold as single unit, allowing targeted replacement without excess stock

Compatibility

Designed for use with size 4 indexable toolholders requiring a 0.5 inch inscribed circle anvil. Compatible anvil screw is CA5008 and compatible anvil key is 5 SMS795, as specified by the manufacturer.

Installation Notes

Installation is performed by machinists or toolroom technicians during toolholder maintenance or insert change procedures. Ensure the toolholder is removed from the machine and all cutting forces are relieved before replacing the anvil. Use the specified anvil screw CA5008 and anvil key 5 SMS795 to secure the component properly. Inspect the toolholder pocket for damage or debris before seating the new anvil.
