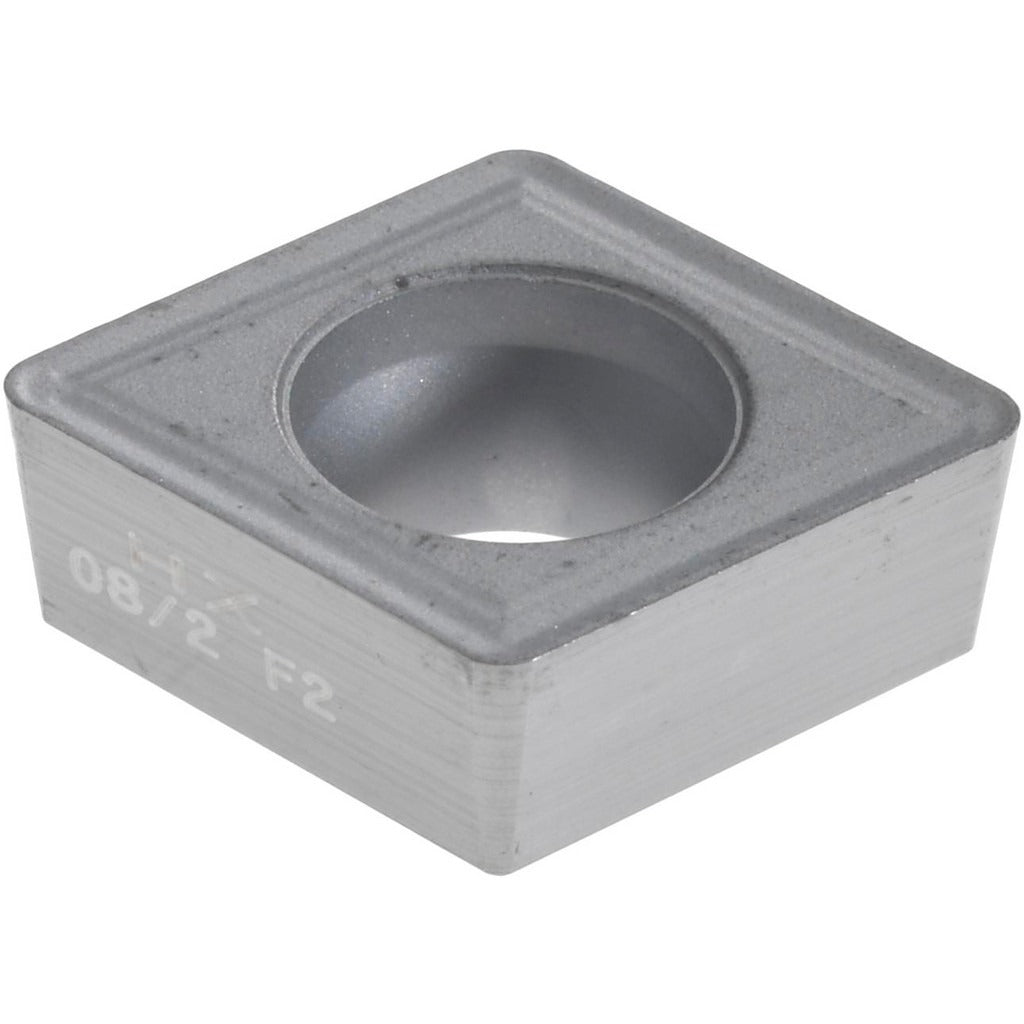

Seco 74011755 Turning Insert CCMT32.52-F2 Hx Carbide

Product Description

The SECO 74011755 is a solid carbide turning insert in the CCMT32.52-F2 HX configuration, designed for precision metal-cutting operations on CNC lathes and turning centers. It features an 80-degree diamond (rhombic) shape with a positive rake and positive side clearance, a 3/8-inch inscribed circle, a 1/32-inch corner radius, and a 7-degree relief angle. The F2 chip breaker geometry targets finishing cuts, while the uncoated HX grade delivers high wear resistance and toughness across a wide range of workpiece materials. Cutting edges are honed and held in place by a screw-clamp system.

This insert is suited for boring, facing, and turning applications in both light and moderate production environments. Its grade characteristics make it applicable across stainless steel (M), cast iron (K), aluminum and non-ferrous metals (N), and superalloys and titanium (S). The CCMT form factor is a widely used neutral-hand insert style compatible with standard CCMT-series toolholders found in most production and job-shop turning setups. The insert carries both ANSI and ISO designations, with an ISO code of CCMT09T308-F2.

Key Features

• 80-degree diamond (C) insert shape with positive rake and 7-degree relief angle for efficient chip clearance
• F2 finishing chip breaker geometry for smooth surface finish on light to moderate depth-of-cut passes
• Uncoated HX solid carbide grade rated for superalloys, titanium, stainless steel, cast iron, and non-ferrous materials
• Honed cutting edge style for reduced built-up edge on difficult-to-machine alloys
• Two cutting edges per insert; neutral hand orientation fits standard CCMT screw-on toolholders
• Conforms to ANSI and ISO standards; ANSI code CCMT32.52, ISO code CCMT09T308

Compatibility

Designed as a direct-fit replacement for CCMT32.52-F2 toolholders conforming to ANSI and ISO CCMT09T308 screw-clamp insert seats. Suitable for boring, facing, and turning operations across material grades S10, S20, and S25. Primary workpiece material codes M, K, N, and S are supported; secondary codes M, K, N, and H are also applicable.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the machine spindle before changing inserts. Seat the insert fully into the pocket and secure with the clamp screw to the toolholder manufacturer's specified torque before resuming operation. Inspect the insert seat and clamp for wear or debris each time the insert is indexed or replaced.
