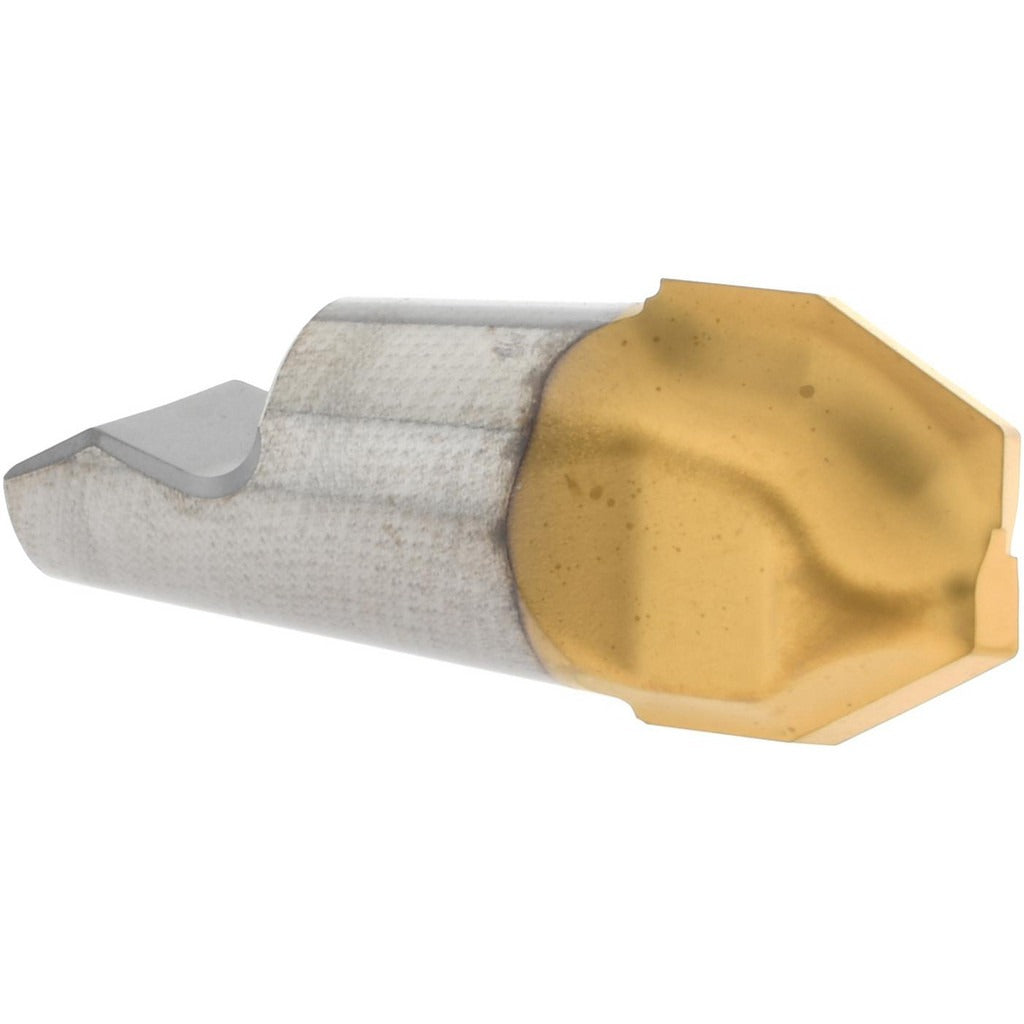

Seco 74004993 Chamfer Milling Tip 0.394 in Carbide T60M

Product Description

The SECO 74004993 is a chamfer replaceable milling tip designed for use in the Minimaster MM10 modular end mill system. Built from solid carbide with a TiAlN coating applied via PVD process, this tip delivers wear resistance and thermal stability across a range of workpiece materials. It carries the T60M manufacturer grade and features a 60-degree lead angle with a 30-degree chamfer angle, producing a 120-degree included angle geometry. The cutting diameter measures 0.206 inches with a cutting width of 0.394 inches and a functional length of 0.378 inches. Two flutes with an E03 chipbreaker configuration support controlled chip evacuation. Material grade is C5. This tip is installed by machinists and CNC tooling technicians.

The 74004993 is suited for chamfering operations on steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, covering ISO material codes P, M, K, N, S, and H. It is a right-hand cut tip and is intended for use in moderate to high-demand milling applications where a replaceable indexable tip format reduces tooling downtime. The MM10 series platform allows the tip to be swapped at the machine without removing the holder from the spindle, making it practical in production environments.

Key Features

• Carbide construction with TiAlN PVD coating for thermal and wear resistance
• 60-degree lead angle and 30-degree chamfer angle for chamfering operations
• 0.394-inch cutting width with maximum depth of cut of 0.157 inches
• Two flutes with E03 chipbreaker for controlled chip flow
• Compatible with ISO material groups P, M, K, N, S, and H
• Right-hand cut; no coolant-through capability
• Meets ANSI standards; material grade C5

Compatibility

Designed for use with the SECO Minimaster MM10 modular milling system. The full tip designation is MM10-0.394-60.16-E03. Sold individually; minimum order quantity is 2 units.

Installation Notes

This replaceable milling tip is installed by tooling technicians or machinists following the spindle lockout and de-energization procedures applicable to the machine tool in use. Seat the tip fully into the MM10 holder using the appropriate torque tool per the holder manufacturer specifications. Inspect the seating surface and tip for chips or debris before installation. Follow all applicable shop safety procedures and machine tool manufacturer guidelines when changing indexable tooling.
