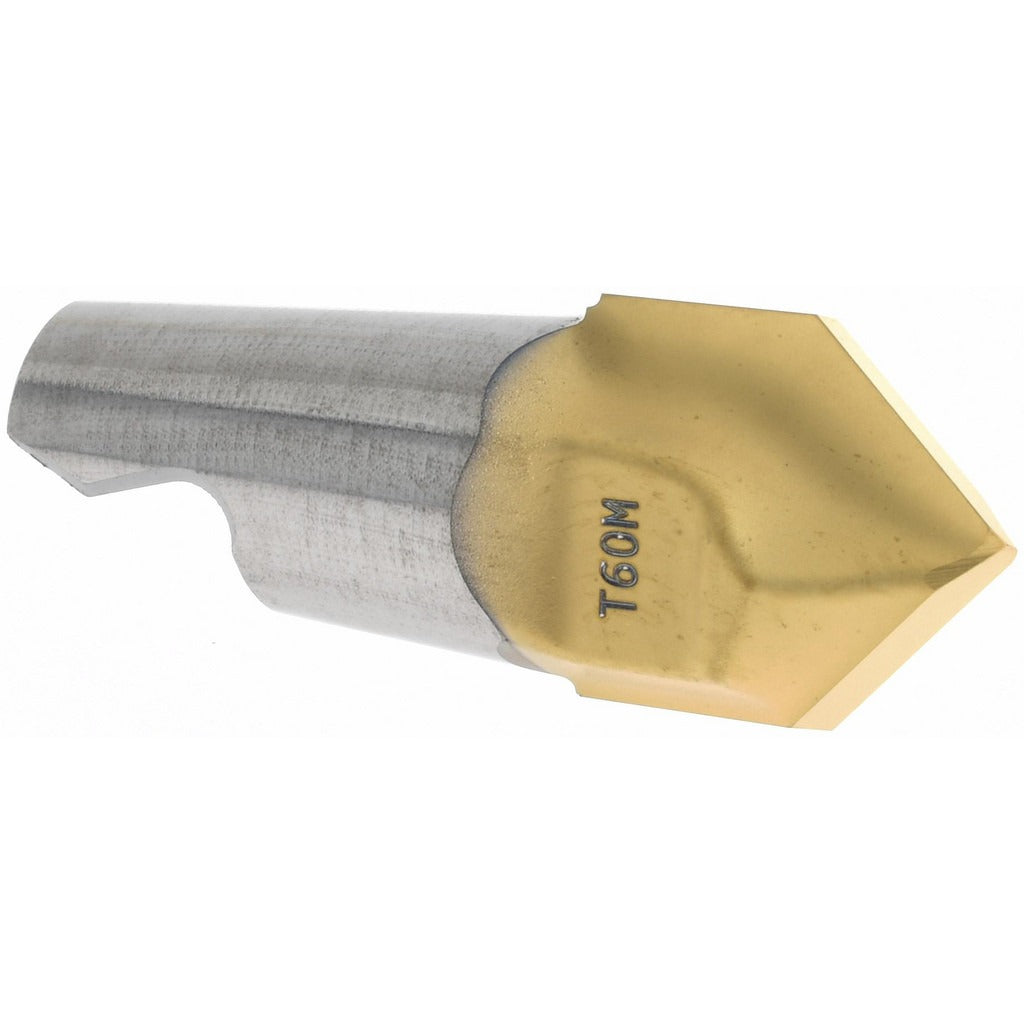

Seco 74001394 Chamfer Milling Tip 0.394 in Carbide MM10

Product Description

The SECO 74001394 is a replaceable chamfer milling tip designed for use with Minimaster MM10 series milling systems. Manufactured from solid carbide with a PVD-applied TiAlN coating, this right-hand tip carries a 45-degree chamfer angle and a 90-degree included angle. It features 2 flutes, a cutting diameter of 0.394 inches, and a maximum depth of cut of 0.185 inches. The T60M manufacturer grade and M03 chipbreaker geometry make it well suited for productive metal removal across a broad range of workpiece materials. Installation and replacement are performed by machinists and toolroom technicians as part of indexable tooling maintenance.

This chamfer tip is intended for use in Minimaster MM10 series modular milling systems. Compatible workpiece materials include steel, stainless steel, cast iron, non-ferrous metals, superalloys, titanium, and hard materials, corresponding to material codes P, M, K, N, S, and H. The functional length of 0.465 inches and extension from holder of 0.465 inches position it for light-depth chamfering and center-drilling operations on CNC machining centers and manual milling machines. This tip is sold individually with a minimum order quantity of 2 units.

Key Features

• Carbide construction with PVD TiAlN coating for heat and wear resistance
• 45-degree chamfer angle with 90-degree included angle for chamfering and centering operations
• 2-flute design with M03 chipbreaker for chip control across multiple material types
• 0.394-inch cutting diameter with 0.185-inch maximum depth of cut
• Right-hand cut orientation; compatible with Minimaster MM10 modular tooling system
• Meets ANSI standards; insert size designation 0.394-C90

Compatibility

Designed for use with Minimaster MM10 series modular milling holders. The full tip designation is MM10-0.394-C90-M03. Verify holder compatibility against SECO Minimaster system documentation before ordering.

Installation Notes

This replaceable tip is installed and removed by machinists using the appropriate SECO Minimaster torque wrench or clamping tool specified for the MM10 holder. Always disengage machine power and confirm spindle is at a full stop before changing tips. Do not exceed the maximum depth of cut rating of 0.185 inches. Handle carbide tips carefully to avoid edge chipping prior to installation.
