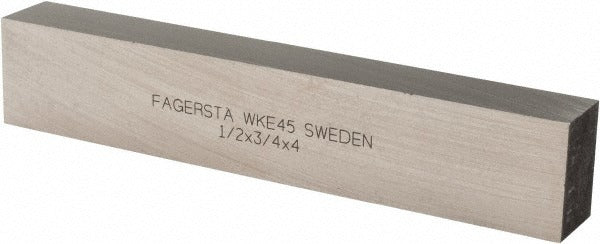

Seco 63006616 Tool Bit Blank WKE45 Cobalt Rectangle

Product Description

The SECO 63006616 is a rectangular cobalt tool bit blank machined to precise dimensions for use in custom tooling applications. Ground from WKE45-grade cobalt high-speed steel, this blank measures 0.5 inches wide by 0.75 inches high with a 4-inch overall length. It is supplied in a solid rectangular cross-section with no pre-formed cutting geometry, allowing machinists and toolroom operators to grind the profile, relief angles, and rake geometry required for their specific lathe, planer, or shaper operations. WKE45 cobalt steel offers improved hot hardness and wear resistance compared to standard M2 high-speed steel, making it suited for interrupted cuts and harder workpiece materials.

This tool bit blank is used in precision machining environments where a standard off-the-shelf insert or formed tool bit does not meet the required geometry. Typical applications include single-point turning tools, threading tools, and form tools ground in-house by toolroom machinists working on manual lathes and shapers. The cobalt content supports extended tool life when cutting alloy steels, stainless steels, and other materials that generate high cutting temperatures. It is sold individually and is suitable for both production toolrooms and job shops requiring custom ground tooling.

Key Features

• WKE45 cobalt high-speed steel provides elevated hot hardness and wear resistance over standard HSS grades
• Rectangular cross-section with 0.5 inches width and 0.75 inches height for consistent seating in standard tool holders
• 4-inch overall length provides material for multiple regrinds over the service life of the blank
• Unground cutting geometry allows the operator to customize rake, relief, and profile angles to application requirements
• Sold as a single piece with no minimum order quantity above one unit

Compatibility

Designed as a standard rectangular tool bit blank for use in manual lathe, planer, and shaper tool holders that accept 0.5 inches by 0.75 inches cross-section blanks.

Installation Notes

Tool bit blanks require grinding by a qualified machinist or toolroom technician before use as a cutting tool. Use a suitable bench or surface grinder with a wheel rated for high-speed steel and cobalt alloys. Ensure the workpiece is properly secured in the tool holder and the tool post is tightened before engaging a cut. Follow applicable shop safety procedures including eye protection and grinding area ventilation when shaping this blank.
