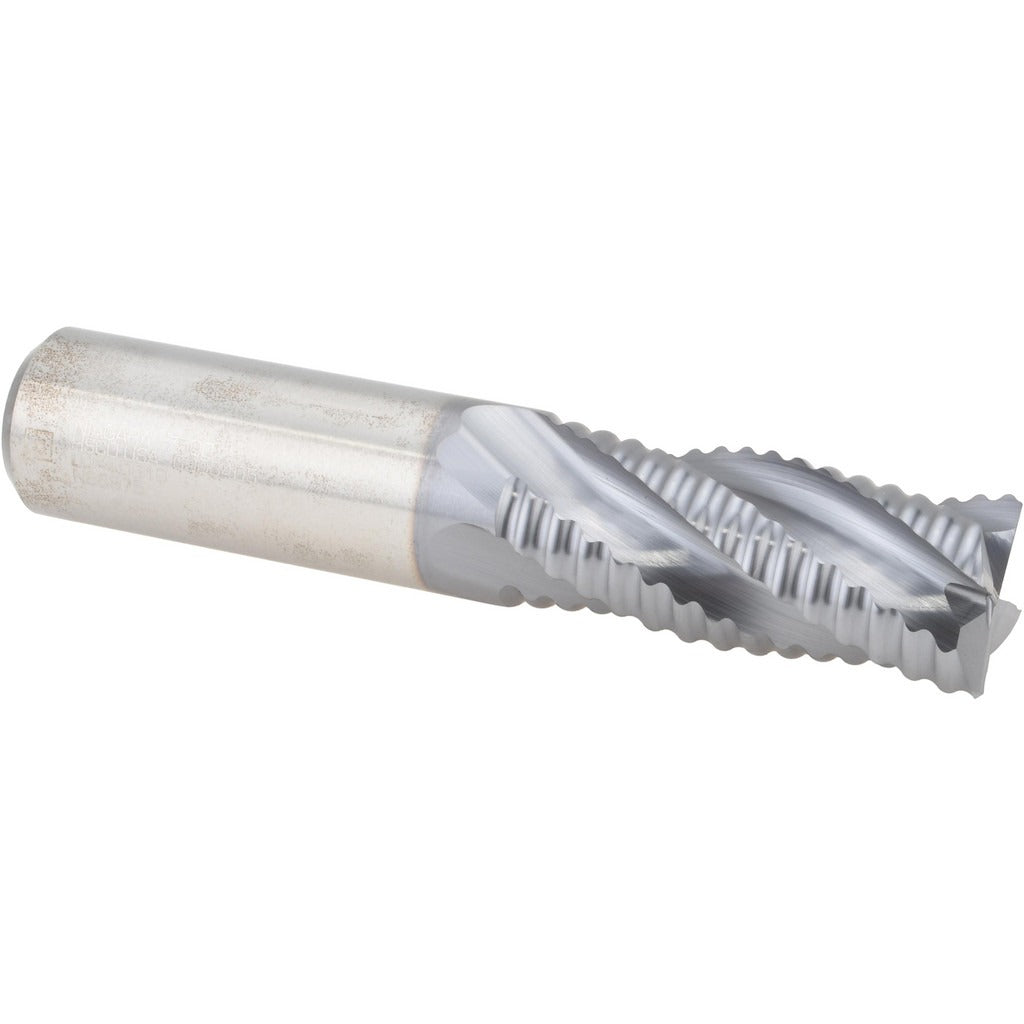

Seco 17016590 Roughing End Mill 3/4 in 4 Flute Cobalt

Product Description

The SECO 17016590 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a TiCN coating, it delivers strong wear resistance and heat tolerance across a wide range of ferrous and non-ferrous workpiece materials. The 3/4 inch cutting diameter pairs with a 1.625 inch length of cut and a 3.875 inch overall length, making it well suited for deeper-reach roughing passes. Four right-hand spiral flutes with a 30-degree maximum helix angle provide efficient chip evacuation and stable cutting action. Centercutting geometry allows plunge entry without a pilot hole.

This end mill is intended for use in CNC machining centers, knee mills, and manual milling machines where roughing passes precede finishing operations. It is a fit for job shops, tool rooms, and production environments handling steel, stainless steel, cast iron, and similar materials. The long-length series designation (REC700) accommodates applications requiring extended reach beyond standard-length tooling. Coolant-through capability is not included; external flood coolant or mist is the standard approach for this tool.

Key Features

• M42 cobalt HSS construction for elevated red hardness and toughness in difficult-to-machine alloys
• TiCN coating improves surface hardness and reduces built-up edge compared to uncoated tooling
• Centercutting design allows direct plunge milling without a pre-drilled entry point
• 30-degree maximum helix angle promotes smooth chip flow and reduced cutting forces
• Right-hand cut and right-hand flute spiral for use in standard spindle rotation setups
• Long-length series (REC700) provides extended reach for deeper pockets and shoulders

Compatibility

Designed as an OEM-style replacement or direct-purchase roughing end mill for standard 3/4 inch straight-shank tool holders, collet chucks, and end mill holders used in vertical and horizontal milling applications.

Installation Notes

Installation is performed by machinists and toolroom personnel using an appropriate 3/4 inch collet, end mill holder, or Weldon-style shank holder. Confirm runout with a dial indicator before beginning a cut, as runout directly affects tool life and surface finish on roughing passes. Power down and lock out the spindle before changing tooling in compliance with OSHA lockout/tagout procedures. Shank diameter tolerance is -0.0001 to -0.0005 inches; verify holder bore condition before seating the tool.
