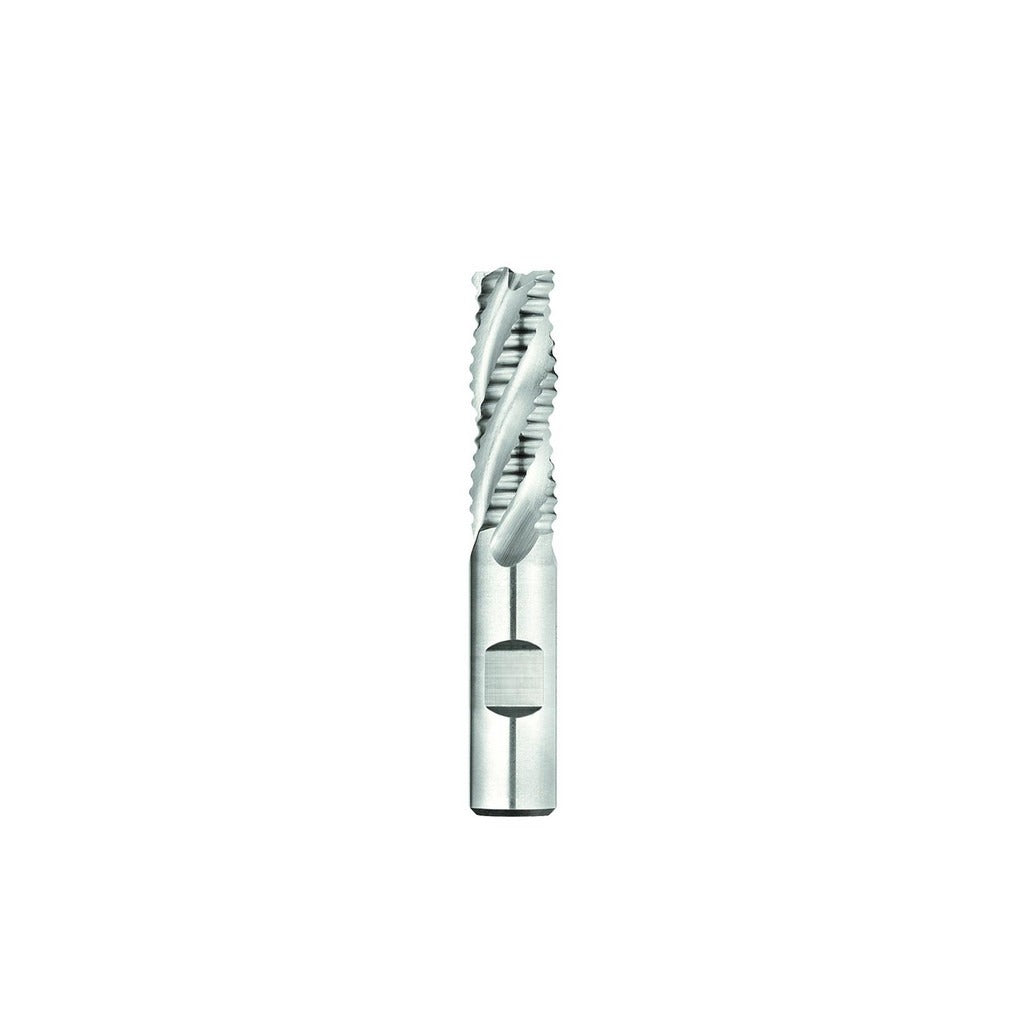

Seco 17016588 Roughing End Mill 5/8 in 4 Flute Cobalt

Product Description

The SECO 17016588 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and finished with a TiCN coating, it handles tough ferrous and non-ferrous materials where standard HSS tooling falls short. The 5/8-inch diameter cutter runs four right-hand spiral flutes at a 30-degree maximum helix angle, producing a shearing action that reduces cutting forces and heat buildup. The center-cutting geometry allows plunge entry as well as standard peripheral milling. With a 1.625-inch length of cut and 3.75-inch overall length, it fits standard CNC machining centers and manual knee mills alike.

This end mill is suited for roughing passes in job shop, production, and maintenance machining environments. It is a long-series tool, giving additional reach for workpieces that require clearance past fixturing or stepped features. The TiCN coating extends tool life in interrupted cuts and abrasive materials compared to uncoated cobalt tooling. Machinists and CNC operators use this style of roughing end mill when cycle time reduction is the priority and surface finish is addressed in a separate finishing pass. It is not designed for coolant-through delivery.

Key Features

• M42 cobalt construction for increased red hardness over standard M2 HSS
• TiCN coating reduces friction and extends tool life in abrasive materials
• 4 right-hand spiral flutes at 30-degree helix for efficient chip evacuation
• Center-cutting design permits direct plunge entry
• Long-series length provides added reach past fixtures and workpiece steps
• 5/8-inch shank diameter matches common ER and side-lock toolholders

Compatibility

Designed for use in standard CNC machining centers and manual milling machines accepting a 5/8-inch straight shank. Part of the SECO REC700 series of roughing end mills.

Installation Notes

Installation and use should be performed by a qualified machinist or CNC operator. Secure the shank fully within the toolholder to the minimum recommended engagement depth before operation. Verify spindle runout with a dial indicator before taking roughing passes, as excessive runout accelerates flute wear unevenly. This tool does not support coolant-through delivery; flood or mist coolant applied externally is acceptable.
