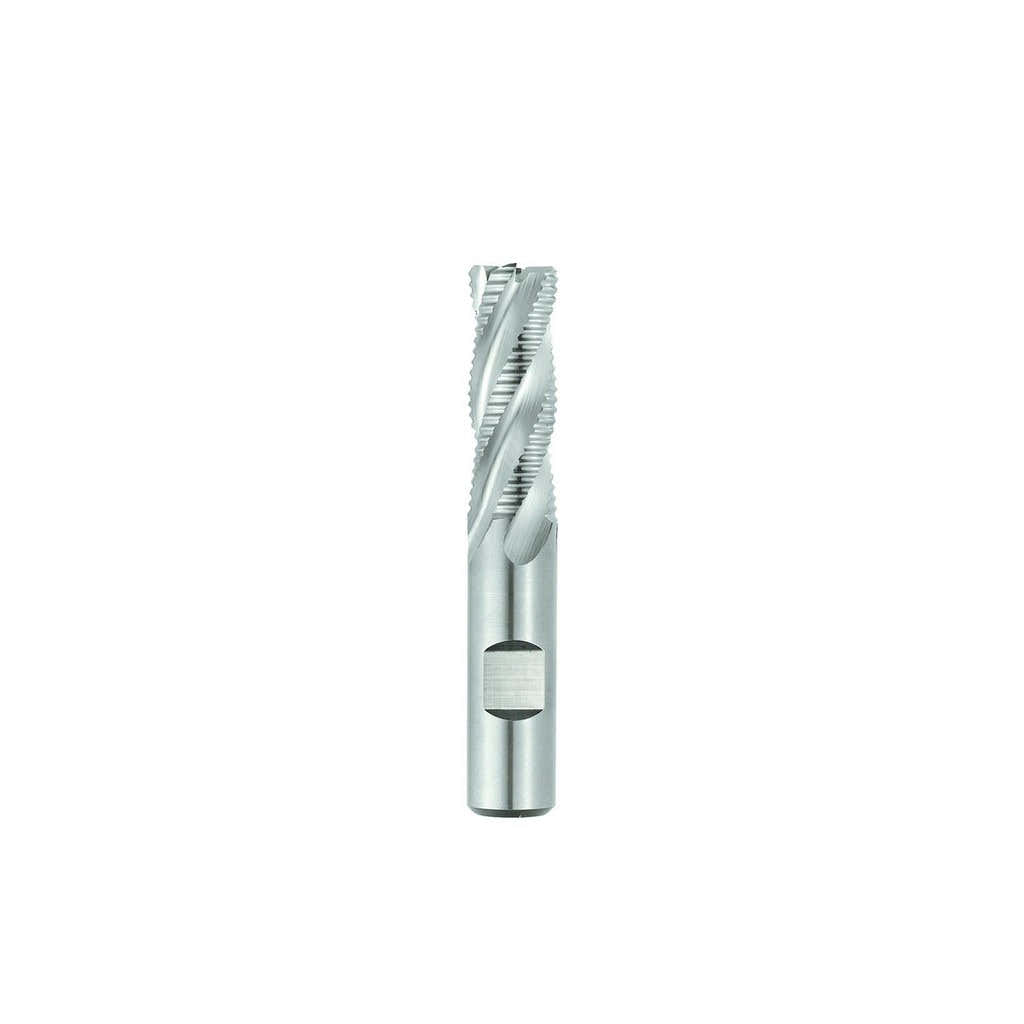

Seco 17016284 Roughing End Mill 1 in 5 Flute Cobalt Ticn

Product Description

The SECO 17016284 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and coated with TiCN for improved wear resistance and heat reduction, this tool handles tough ferrous and non-ferrous materials in production environments. It features a 1 inch mill diameter, a 4 inch length of cut, and a 6.5 inch overall length. The 5-flute, spiral right-hand configuration with a 30-degree maximum helix angle promotes chip evacuation and smooth cutting action. Center cutting capability allows plunge entry without a pre-drilled pilot hole. This end mill is installed by machinists and tool-and-die professionals in CNC and manual milling setups.

This end mill is suited for heavy roughing passes in vertical and horizontal milling machines as well as CNC machining centers. The long flute length of 4 inches makes it well suited for deep-pocket roughing and side milling operations where a standard-length end mill falls short. The TiCN coating extends tool life in abrasive cutting conditions. It is a long-series tool in the REC448 series, intended for production shops running ferrous alloys, stainless steels, and similar demanding workpiece materials.

Key Features

• M42 cobalt steel construction for toughness and heat resistance in demanding cuts
• TiCN coating reduces friction and extends tool life in abrasive materials
• 5 spiral flutes with 30-degree maximum helix angle for efficient chip evacuation
• 4 inch length of cut for deep-pocket and long-reach roughing applications
• Center cutting geometry allows direct plunge entry into workpiece material
• Right-hand cut and right-hand flute direction for standard CNC and manual mill setups

Compatibility

Designed as an OEM-style cutting tool compatible with standard 1 inch collet chucks, end mill holders, and milling machine spindles accepting a 1 inch straight shank. Part of the SECO REC448 series.

Installation Notes

Installation is performed by machinists using an appropriate 1 inch end mill holder or collet chuck rated for the intended cutting loads. Ensure the machine spindle and holder are clean and free of debris before seating the tool. Verify runout with a dial indicator before beginning the cut. Follow the machine manufacturer and tooling guidelines for feed rate, depth of cut, and spindle speed when setting up roughing passes.
