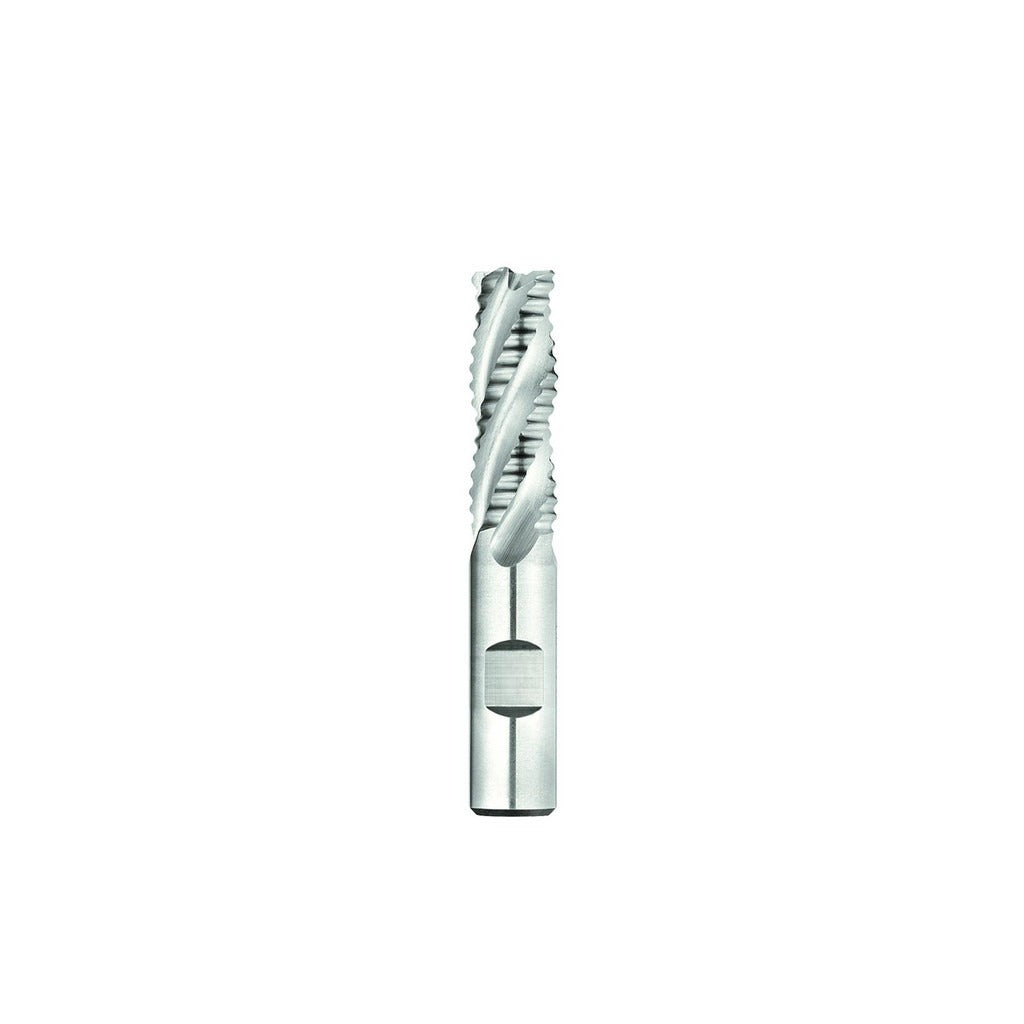

Seco 17015283 Roughing End Mill 1/2 in 4 Flute Cobalt Ticn

Product Description

The SECO 17015283 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel and coated with TiCN for extended tool life, this end mill features a 1/2 inch mill diameter, 4 spiral flutes, and a 30-degree maximum helix angle. The 2.5 inch length of cut and 4.5 inch overall length make it well suited for moderate-depth roughing passes. Right-hand cutting and right-hand flute direction are standard. This tool is installed and used by machinists and tool-and-die professionals working on CNC mills, manual knee mills, and similar machine tool equipment.

This end mill is appropriate for roughing cuts in ferrous and hard metals where heat resistance and edge retention are priorities. The TiCN coating reduces friction and resists wear under high chip loads. The centercutting geometry allows plunge entry when needed. With a 1/2 inch shank diameter matching the mill diameter, it fits directly into standard 1/2 inch ER collets, end mill holders, and Weldon-style side-lock holders. It is suited for production environments and job shops running interrupted cuts or tough alloys where standard HSS tooling degrades quickly.

Key Features

• M42 cobalt HSS construction for improved heat and wear resistance over standard M2 HSS
• TiCN coating reduces friction and extends tool life in ferrous materials
• 4 spiral flutes with 30-degree helix angle for efficient chip evacuation during roughing
• Centercutting design allows direct plunge entry without a pilot hole
• Right-hand cut and right-hand flute direction, regular length series (REC700)
• 1/2 inch shank diameter matches mill diameter for straightforward holder selection

Compatibility

Designed as an OEM-style roughing end mill compatible with standard 1/2 inch end mill holders, ER32 or ER40 collet chucks, and Weldon-style side-lock holders used on CNC and manual milling machines.

Installation Notes

Installation is performed by qualified machinists following shop safety procedures. Power down and lock out the spindle drive before loading or changing tooling. Seat the shank fully into the holder to the recommended engagement depth before tightening. Verify runout with a dial indicator after clamping, as excessive runout accelerates wear and reduces surface finish quality on roughing passes.
