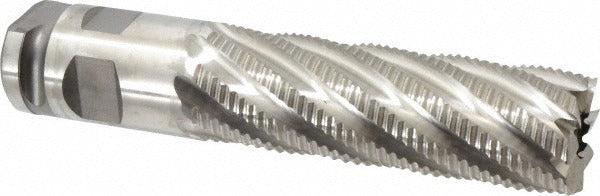

Seco 17014150 Roughing End Mill 2in 8 Flute Cobalt

Product Description

The SECO 17014150 is a single-end cobalt roughing end mill designed for aggressive material removal in milling operations. Built from M42 cobalt high-speed steel with a bright, uncoated finish, it features 8 flutes and a 2-inch cutting diameter with a 6-inch length of cut. The overall length is 9.75 inches. This tool is configured for right-hand cutting and right-hand flute direction, making it a standard choice for conventional roughing passes on machining centers and manual mills. It is installed by machinists and tooling technicians in production and job-shop environments.

This roughing end mill is suited for heavy stock removal on ferrous and non-ferrous materials where chip-breaking geometry reduces cutting forces and heat buildup. The 8-flute configuration on a 2-inch diameter body provides high metal removal rates in roughing applications. The regular length type and non-centercutting geometry mean it is intended for peripheral and side milling rather than plunge cutting. The 2-inch shank diameter matches the cutting diameter, requiring a matching collet, shell mill arbor, or end mill holder with the appropriate bore size.

Key Features

• 2-inch mill diameter with 6-inch length of cut for deep roughing passes
• M42 cobalt HSS construction for elevated heat and wear resistance
• 8-flute design promotes chip breaking and reduces cutting forces during roughing
• Right-hand cut, right-hand helix for use on standard spindle configurations
• Bright uncoated finish — suitable for use with cutting fluids on a range of materials
• Single-end configuration; non-centercutting geometry requires ramp or side entry

Compatibility

Designed as a standard single-end roughing end mill for use in milling machines, machining centers, and manual knee mills that accept a 2-inch shank diameter toolholder. Part of the SECO REM710 series.

Installation Notes

Installation requires a toolholder with a 2-inch bore — verify holder condition and runout before securing the tool. Tighten set screws or collet nuts to the toolholder manufacturer's specified torque using calibrated tooling. This tool is non-centercutting and must be entered into the workpiece via a side approach or programmed ramp; do not plunge directly into solid material. Ensure the spindle is fully stopped and the machine is in a safe state before changing tooling.
