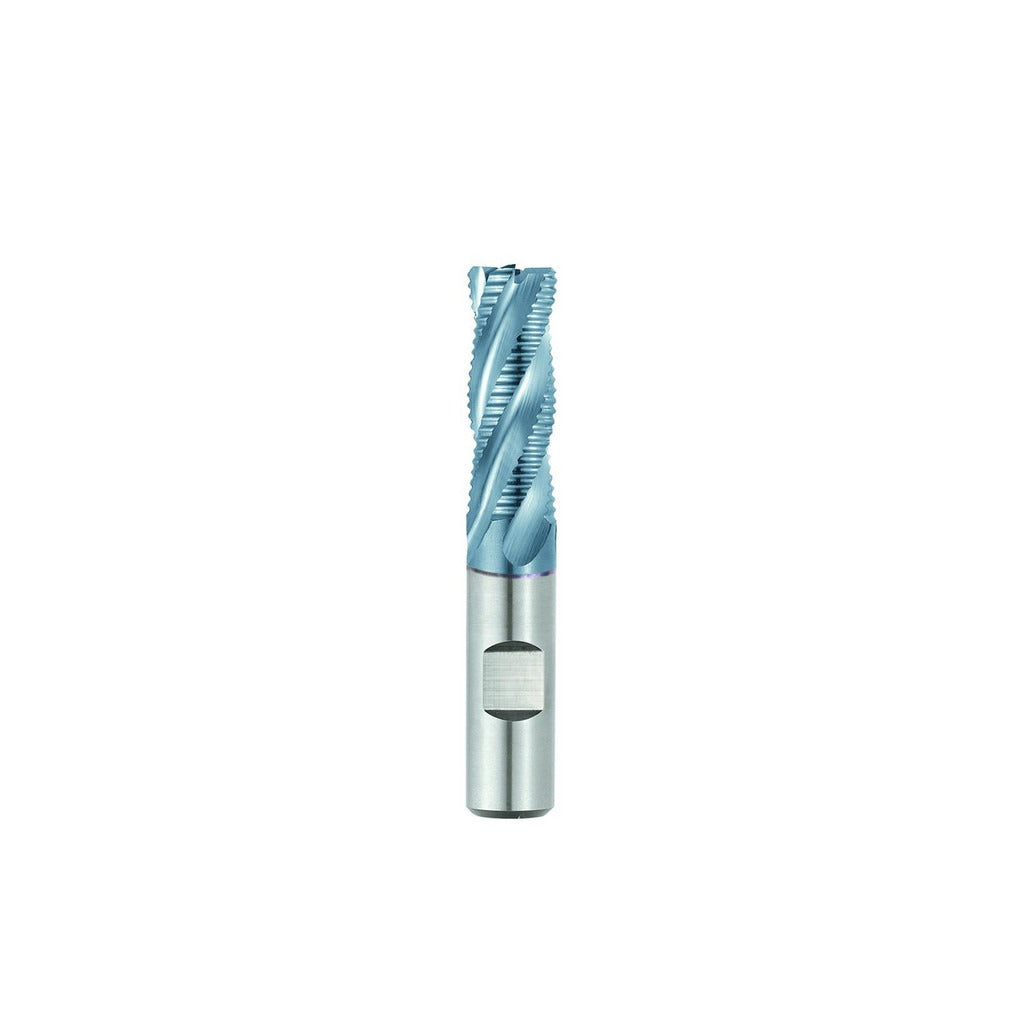

Seco 17010841 Roughing End Mill 1/2 in 4 Flute Cobalt

Product Description

The SECO 17010841 is a single-end cobalt roughing end mill designed for aggressive material removal in milling applications. Built from M42 cobalt high-speed steel, it delivers heat resistance and edge retention when cutting ferrous metals, stainless steel, and other tough workpiece materials. The 1/2 inch diameter tool features 4 spiral flutes with a right-hand cutting and flute direction, a 30-degree maximum helix angle, and a bright uncoated finish. With a 1.625 inch length of cut and 3.625 inch overall length, it fits standard toolholders and is suited for roughing passes where chip evacuation and tool life matter most.

This end mill is used in job shop, production machining, and maintenance environments where high-speed steel tooling is preferred over carbide for interrupted cuts or flexible setups. It is a regular-length tool intended for use in vertical machining centers, knee mills, and manual bridgeport-style machines. Machinists and tool room operators select this style of roughing end mill for hogging stock on steel and alloy workpieces before finishing passes. Coolant-through capability is not included, so flood or mist coolant applied externally is the standard approach.

Key Features

• M42 cobalt HSS construction for improved heat and wear resistance over standard HSS
• 4 spiral flutes with right-hand cut and right-hand helix for efficient chip evacuation
• 30-degree maximum helix angle optimized for roughing cuts
• Bright uncoated finish suitable for a wide range of ferrous and non-ferrous materials
• 1/2 inch shank diameter matches 1/2 inch collets, end mill holders, and Weldon-style toolholders
• Single-end design in REM445 series for consistent roughing performance

Compatibility

Designed as an OEM-style roughing end mill for use in standard 1/2 inch end mill holders, collet chucks, and side-lock holders on vertical machining centers and manual milling machines.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Power down and lock out the machine spindle before seating or removing the tool from its holder. Ensure the shank is fully engaged in the toolholder to the minimum insertion depth recommended for the holder type. Inspect the collet or holder bore for wear or runout before use, as excessive runout accelerates edge wear on roughing geometry.
