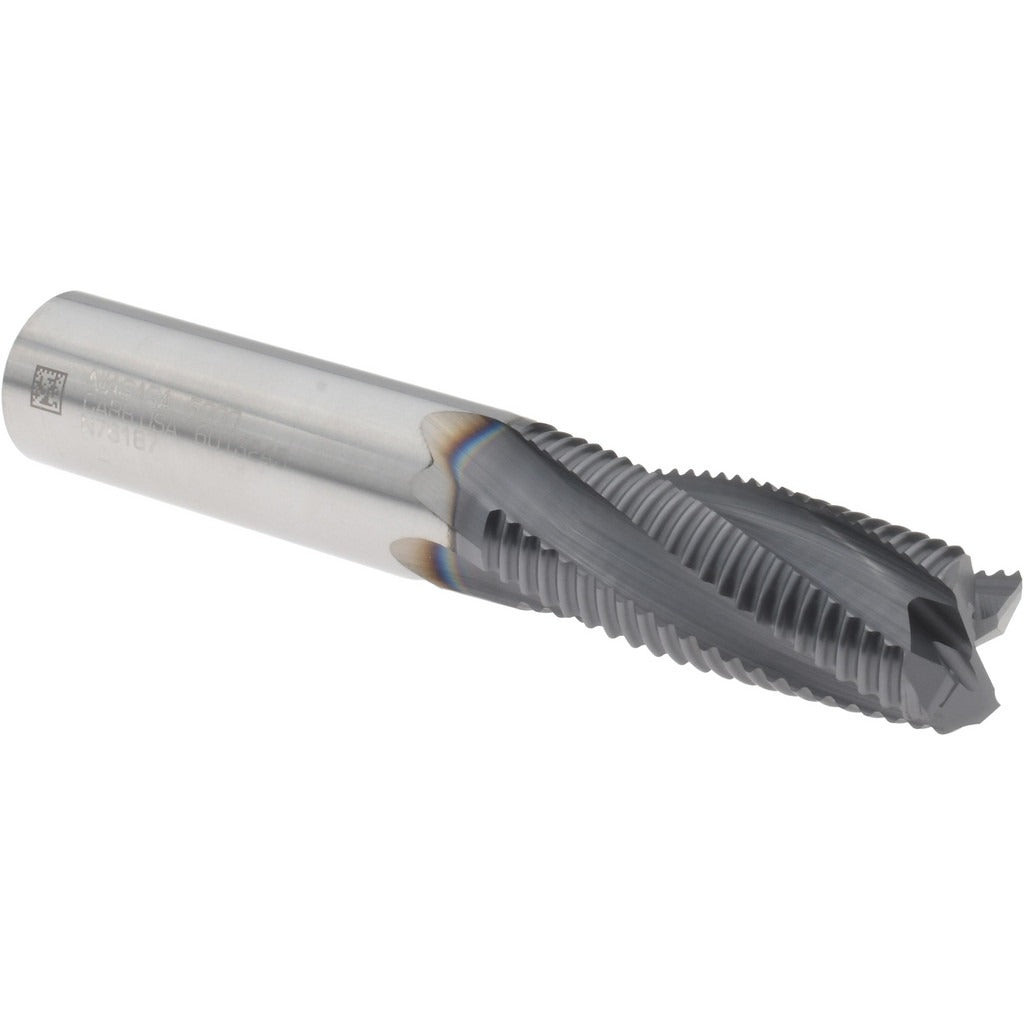

Seco 17004671 Roughing End Mill 1/2 in 4 Flute Solid Carbide

Product Description

The SECO 17004671 is a single-end roughing end mill designed for aggressive material removal in milling applications. Built from solid carbide with an AlTiN coating, it delivers heat resistance and extended tool life in demanding cutting conditions. The cutter features a 1/2-inch mill diameter, four spiral flutes with a fine pitch, and a 20-degree maximum helix angle. A 45-degree chamfer at 0.025 inches width supports edge entry and chip evacuation. The Weldon flat shank provides positive drive and minimizes slippage under heavy radial loads. This tool is intended for use by machinists and CNC operators in production and job-shop environments.

This end mill is suited for roughing passes on ferrous and non-ferrous metals in vertical and horizontal milling machines as well as CNC machining centers. The AlTiN coating performs well in dry or minimum-quantity lubrication cutting setups where heat generation is a concern. The right-hand cut and right-hand flute direction make it compatible with conventional spindle rotation. With a 1-1/4-inch length of cut and 3-inch overall length, it fits standard tool holders used in general-purpose milling fixtures.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding cuts
• AlTiN coating for elevated heat resistance and extended tool life
• Four spiral flutes with fine pitch for efficient chip evacuation during roughing
• Weldon flat shank for secure positive-drive tool holding
• 45-degree chamfer angle at 0.025 inches width aids entry and reduces chipping
• Right-hand cut and right-hand flute direction for standard spindle setups

Compatibility

Designed as an OEM-style replacement or direct-fit cutting tool for 1/2-inch bore Weldon flat tool holders used in standard vertical and horizontal milling machines and CNC machining centers.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and locked out before changing tooling. Seat the Weldon flat shank fully into the tool holder and tighten the set screw against the flat to the holder manufacturer's specified torque. Verify runout with a dial indicator after installation before beginning a cut.
