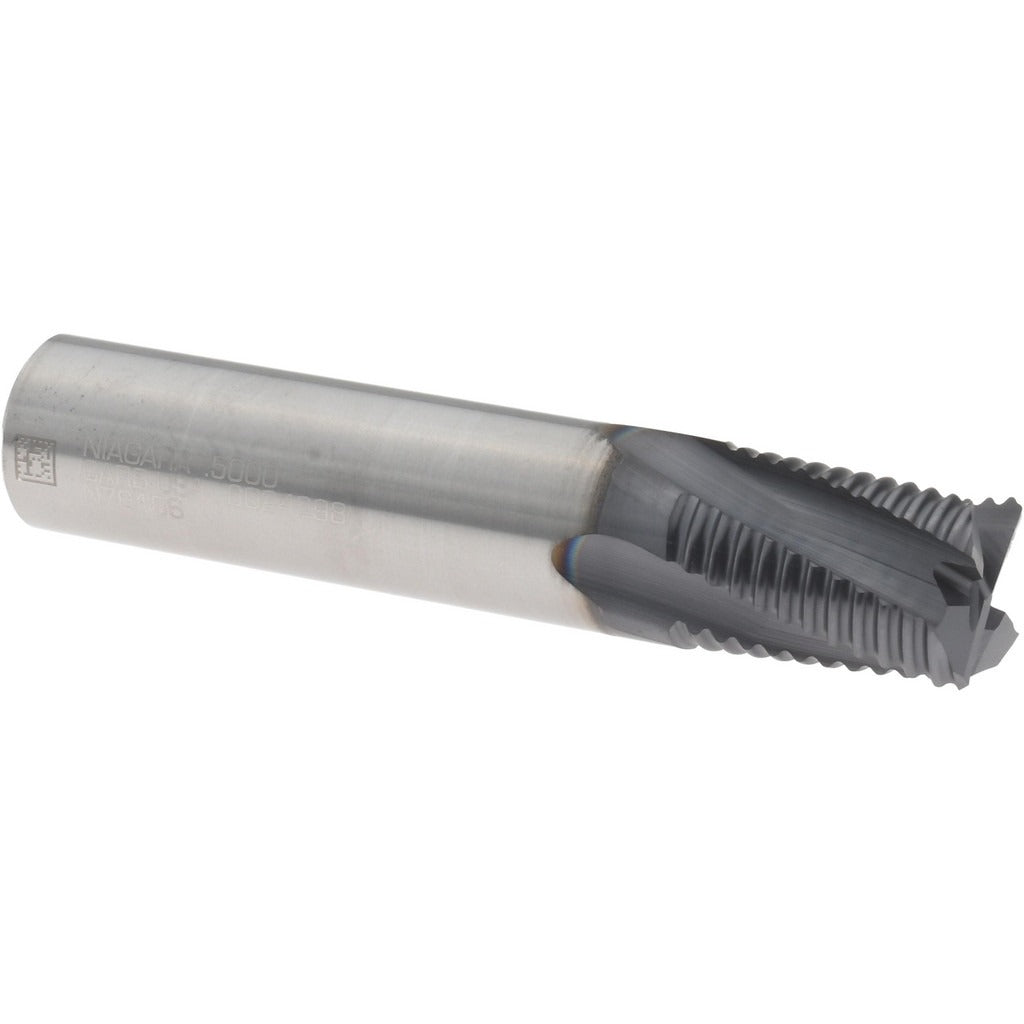

Seco 17004670 Roughing End Mill 1/2 Inch 4 Flute Solid Carbide

Product Description

The SECO 17004670 is a single-end roughing end mill designed for aggressive material removal in milling operations. Built from solid carbide with a TiAlN coating, it handles high-heat cutting conditions that standard HSS tooling cannot sustain. The 1/2 inch diameter, four-flute design with a fine pitch and right-hand spiral flutes produces a controlled chip load across a 5/8 inch length of cut. The Weldon flat shank provides a positive drive connection in set-screw tool holders, reducing pull-out risk under heavy feeds. Machinists and tool-and-die professionals use this end mill for roughing passes on ferrous and non-ferrous workpieces in CNC milling and manual vertical mill applications.

This end mill is suited for roughing operations in job shop, production machining, and maintenance-repair environments. The 45-degree chamfer geometry and 20-degree maximum helix angle make it appropriate for side milling, slotting, and pocket roughing where chip evacuation and tool life under continuous cuts are priorities. The center-cutting design allows plunge entry. At 2-1/2 inches overall length, it fits standard short-reach tool holders used on vertical machining centers and knee mills without extended-reach adapters.

Key Features

• Solid carbide construction with TiAlN coating for extended tool life in high-heat cuts
• Four-flute fine pitch configuration for aggressive roughing with controlled chip load
• Center-cutting capable — supports direct plunge entry without pre-drilling
• Weldon flat shank eliminates pull-out in set-screw tool holders under heavy feed rates
• Right-hand cut and right-hand flute spiral for standard CNC and manual mill spindles
• 45-degree chamfer angle at 0.025 inch chamfer width for edge stability at cut entry

Compatibility

Designed for use in 1/2 inch bore Weldon flat tool holders on CNC vertical machining centers and manual knee mills. Part of the SECO SR420 series roughing end mill line.

Installation Notes

Installation should be performed by a qualified machinist following shop safety procedures. Ensure the spindle is fully stopped and the machine is powered down before changing tooling. Seat the Weldon flat fully against the set screw contact point in the holder before torquing to the holder manufacturer specification. Verify runout with a dial indicator after tool changes on precision work to confirm proper seating.
