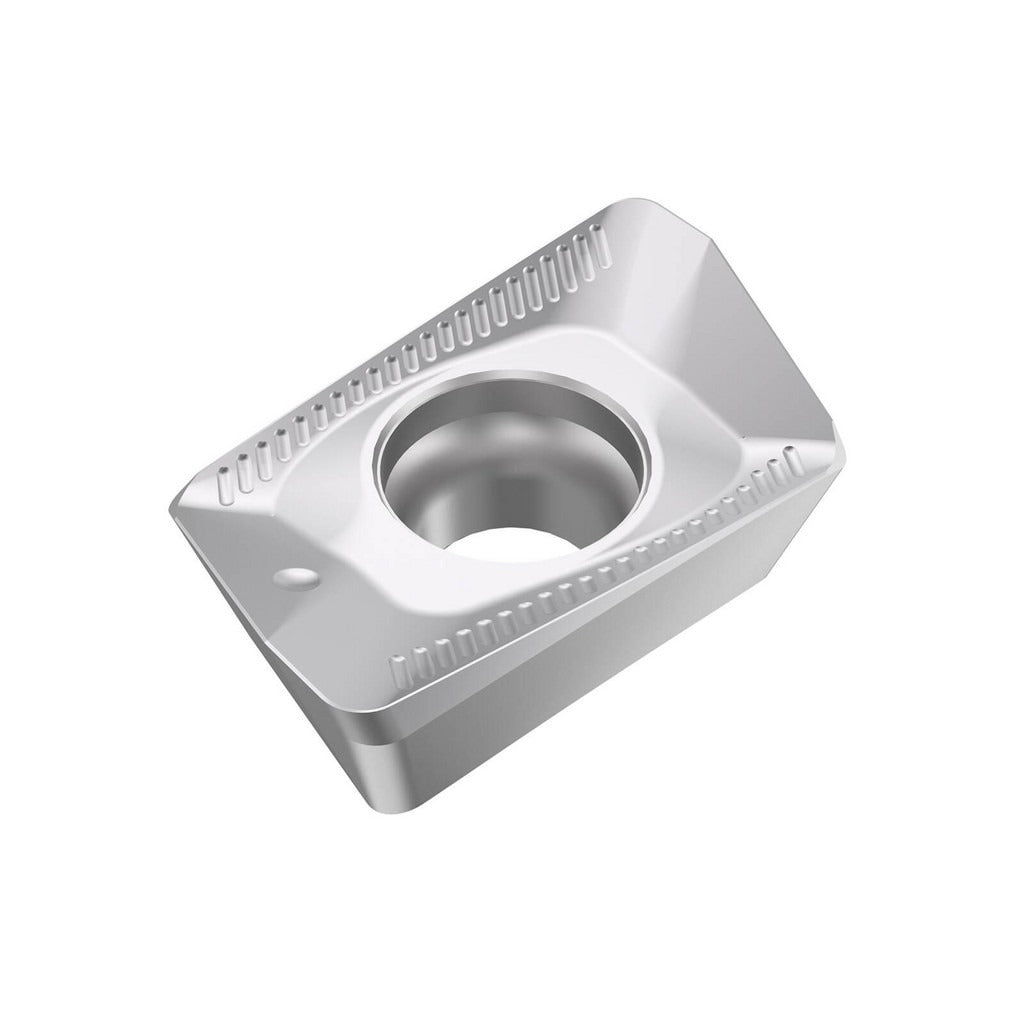

Seco 10198762 Carbide Milling Insert Xomx MP3501

Product Description

The SECO 10198762 is a single-sided carbide milling insert in the XOMX series, designed for indexable face and shoulder milling operations. It features a parallelogram shape with a positive rake angle of 20.1 degrees and a T-land cutting edge style, contributing to smooth chip formation and reduced cutting forces. The insert carries manufacturer grade MP3501 with a Duratomic multilayer coating of TiCN, Al2O3, and Chrome applied for enhanced wear resistance and thermal stability. Two cutting edges are available per insert. Right-hand cutting direction. Installed by machinists and CNC tooling specialists in production milling applications.

This insert is suited for milling steel as its primary workpiece material, with secondary capability in stainless steel, cast iron, superalloys, and titanium. It falls within ISO material grade designations P20, P30, P40, K20, K30, and K40, covering a broad range of ferrous and non-ferrous applications. Typical use cases include face milling, shoulder milling, and profiling operations on vertical and horizontal machining centers running right-hand cutter bodies. The insert is held in the cutter body via a screw-lock method and is compatible with the R217/220.69-12 cutter series.

Key Features

• Duratomic TiCN, Al2O3, and Chrome multilayer coating for wear and heat resistance
• Positive rake angle at 20.1 degrees reduces cutting forces on the workpiece
• T-land cutting edge style improves edge stability during interrupted cuts
• Two usable cutting edges per insert for extended tool economy
• ME08 chip breaker geometry suited for medium roughing to semi-finishing passes
• Compatible with ISO and ANSI standards; ANSI/ISO code XOMX120408TR-ME08

Compatibility

Designed for use with SECO R217/220.69-12 cutter series bodies. Insert size code 120408. ANSI and ISO code XOMX120408TR-ME08. Verify cutter pocket geometry and screw specification before installation.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct Torx or hex key specified by the cutter body manufacturer to seat the clamp screw — do not overtighten. Inspect the pocket seating surface for chips or debris before seating the new insert to ensure proper contact and runout.
