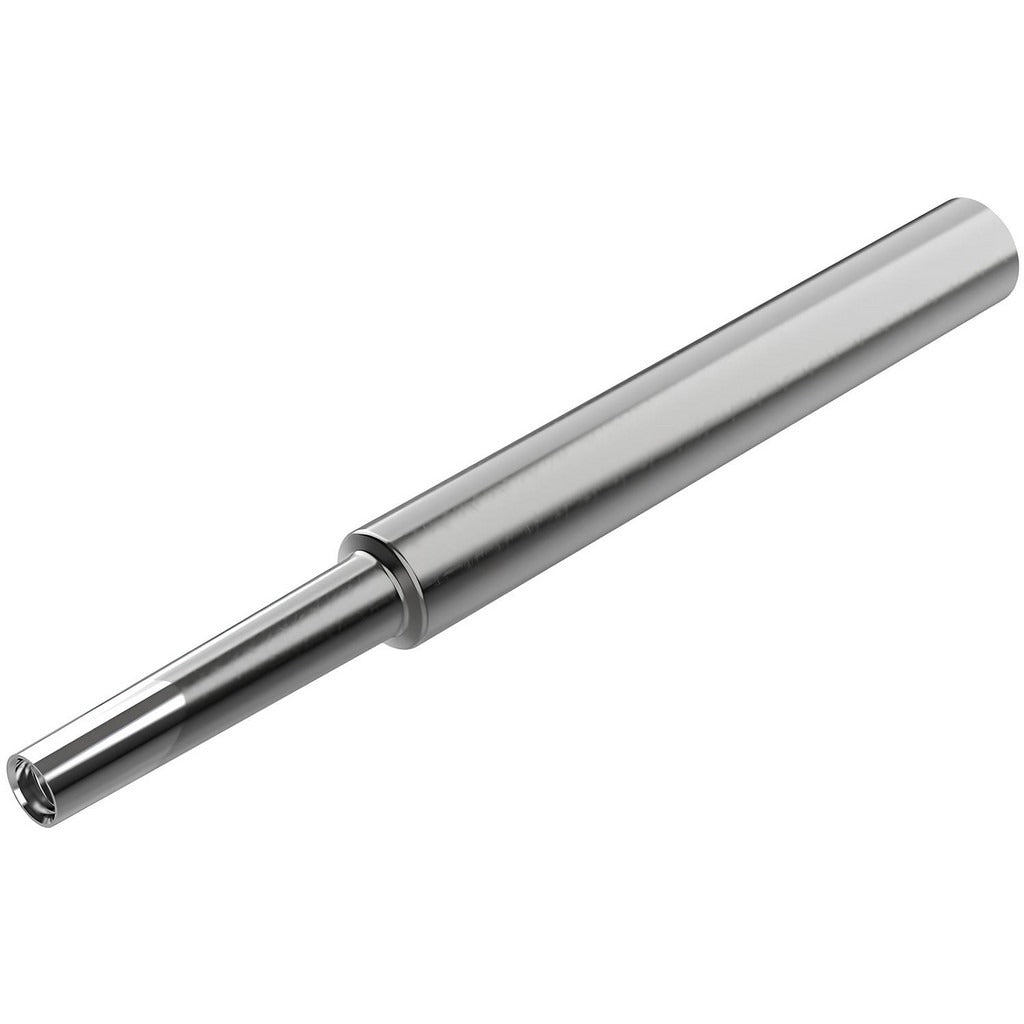

Seco 10138081 Replaceable Tip Milling Shank Xe Carbide

Product Description

The SECO 10138081 is a replaceable tip milling shank in the Series XE toolholder platform, designed for use with E16 tip connections in general purpose milling operations. Built from carbide, this shank features a 3/4 inch round cylindrical shank diameter and a 0.6063 inch neck diameter, with an overall length of 7.5 inches. The E16 neck thread provides the interface between the shank body and the interchangeable milling tip, allowing rapid tip changes without removing the holder from the spindle. Licensed machinists and CNC operators in production and job shop environments install this style of tooling in vertical and horizontal machining centers.

The 10138081 is suited for general purpose milling applications where a replaceable tip system reduces tooling changeover time and overall cost per edge. The XE series shank accepts E16 tip connections, making it compatible with the corresponding family of replaceable milling tips. With an effective cutting length of 3.0 inches and a maximum diameter of 0.6250 inches, this shank is appropriate for slotting, profiling, and peripheral milling operations in a range of workpiece materials.

Key Features

• Series XE toolholder platform with E16 tip connection for fast replaceable tip changes
• Carbide construction for rigidity and vibration resistance in milling applications
• 3/4 inch cylindrical round shank for standard collet chuck or side-lock holder compatibility
• 0.6063 inch neck diameter with 3.0 inch effective length for reach into part features
• 7.5 inch overall length suitable for standard machining center setups
• No Weldon flat and no coolant-through — straightforward mechanical interface

Compatibility

Designed for use with SECO Series XE replaceable milling tips featuring an E16 tip connection size. Fits machine spindles and tooling systems that accept a 3/4 inch cylindrical round shank.

Installation Notes

Installation is performed by qualified machinists or CNC tooling setup technicians. Ensure the machine spindle is fully stopped and the tool is properly clamped in the holder before beginning tip installation or removal. Torque the replaceable tip to the tool manufacturer's specification using the appropriate tip wrench for the E16 connection. Inspect the shank seating surface and tip interface for chips or contamination before assembly to maintain runout accuracy.
