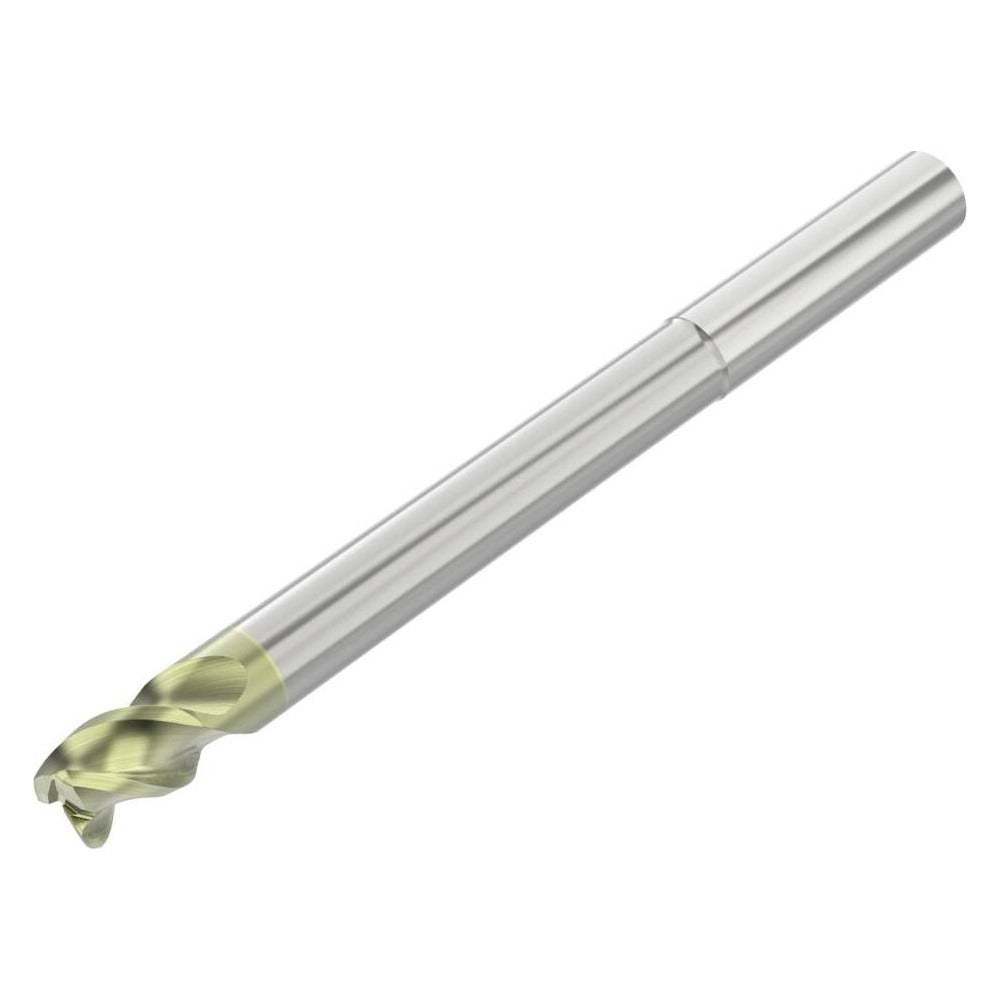

Seco 10023143 Corner Radius End Mill 3/8 in 3 Flute Carbide

Product Description

The SECO 10023143 is a solid carbide corner radius end mill designed for high-performance milling in non-ferrous metals. It features a 3/8-inch cutting diameter, a 0.0600-inch corner radius, and three flutes with a right-hand spiral and high helix angle of 45 degrees. The ANF PVD coating reduces built-up edge and extends tool life in aluminum, copper, brass, and similar workpiece materials. At 4 inches overall length with a long-series reach of 2 inches, this tool suits applications requiring deep-cavity access or extended-reach clearance. It is center-cutting, allowing direct plunge entry, and is classified for both roughing and finishing operations.

This end mill is used in CNC machining centers and manual mills across precision manufacturing, aerospace component work, and general metalworking shops. The straight cylindrical shank measures 3/8 inch in diameter and seats in standard toolholders. The coarse pitch flute geometry and 0.7500-inch length of cut make it effective for slotting, profiling, and pocketing operations in non-ferrous workpiece materials. The extended-reach neck diameter of 0.3600 inches provides wall clearance in deep-cavity cuts without sacrificing rigidity.

Key Features

• Solid carbide construction for rigidity and wear resistance in non-ferrous applications
• ANF PVD coating reduces friction and extends tool life in aluminum and other non-ferrous metals
• 0.0600-inch corner radius reduces stress concentration and improves surface finish at workpiece corners
• Center-cutting design allows direct plunge and ramping entry
• Long-series reach of 2 inches supports deep-cavity and extended-reach milling
• Right-hand cut, right-hand spiral with high helix for efficient chip evacuation

Compatibility

Designed for use with standard straight-bore toolholders accepting a 3/8-inch cylindrical shank. Suited for CNC and manual milling operations in non-ferrous metal workpieces as part of the SECO AN345R series.

Installation Notes

Installation is performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully stopped and locked out before changing tooling. Seat the shank fully into the toolholder and torque the retention mechanism to the toolholder manufacturer specification. Verify runout does not exceed the maximum TIR of 0.0005 inches before beginning the cut.
