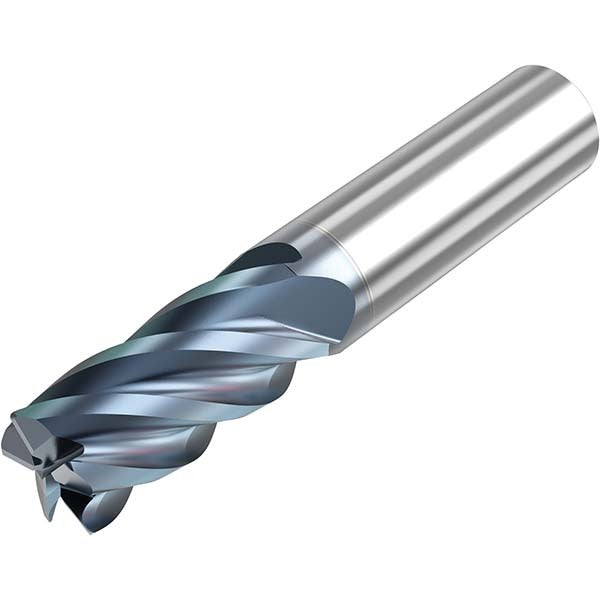

Seco 10008596 Corner Radius End Mill 1/4 in 5 Flute

Product Description

The SECO 10008596 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining environments. This single-end, center-cutting tool features a 0.250 inch mill diameter, a 0.0300 inch corner radius, and five flutes arranged in a right-hand spiral configuration. The 40-degree high helix angle promotes efficient chip evacuation and reduces cutting forces at the tool-workpiece interface. An HTA physical vapor deposition (PVD) coating provides elevated heat resistance and extended tool life. This end mill is installed by machinists and toolroom technicians working with CNC machining centers and manual milling equipment.

The 10008596 is suited for finish milling, profiling, and contouring applications in ferrous and non-ferrous materials where a controlled corner radius and consistent surface finish are required. With a 3/4 inch length of cut and a 2-1/2 inch overall length, it fits standard toolholder setups in both vertical and horizontal machining centers. The straight cylindrical shank accepts common collet-style and end mill holders designed for 1/4 inch shank tooling. This tool is part of the SECO STR540 series.

Key Features

• Solid carbide construction for rigidity and wear resistance in demanding milling applications
• 0.0300 inch corner radius reduces stress concentration and improves part surface finish
• 5-flute design increases feed rate capability compared to standard 2- and 3-flute end mills
• HTA PVD coating provides heat and abrasion resistance for extended tool life
• 40-degree high helix angle promotes smooth cutting action and effective chip removal
• Center-cutting geometry allows plunge entry and ramping operations

Compatibility

Designed for use with standard toolholders accepting a 1/4 inch straight cylindrical shank, including collet chucks and end mill holders commonly used in CNC and manual milling equipment. Part of the SECO STR540 series.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the tool changer or spindle lock is engaged before loading or removing the end mill. Seat the shank fully into the toolholder and torque the retention screw or collet nut to the toolholder manufacturer's specified value. Verify runout does not exceed the 0.0005 inch maximum TIR specification before beginning the cut.
