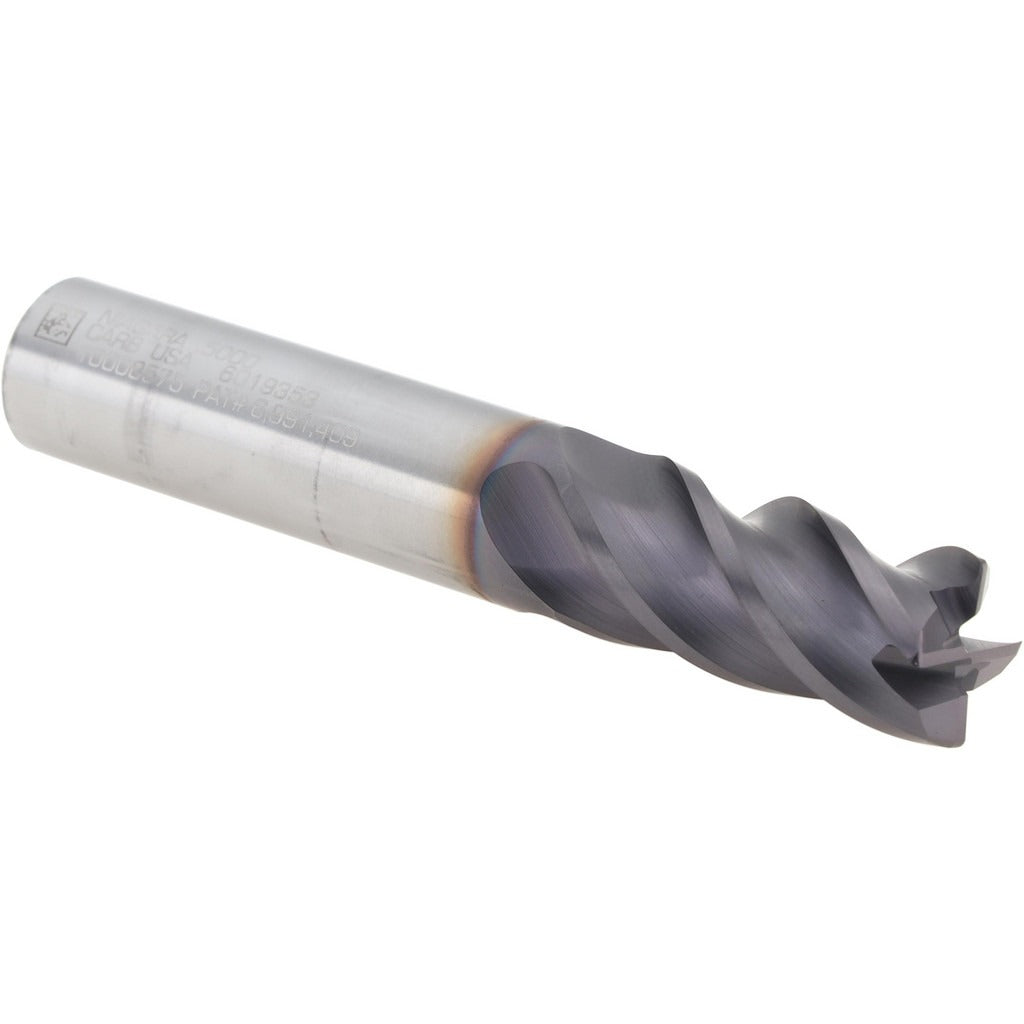

Seco 10008575 Corner Radius End Mill 0.5 in 4 Flute Carbide

Product Description

The SECO 10008575 is a solid carbide corner radius end mill designed for precision milling operations in metalworking and machining applications. It features a 0.5-inch diameter, a 1-inch length of cut, and a 0.030-inch corner radius that reduces stress concentrations at the tool tip and extends part life at inside corners. The four-flute, single-end design with a right-hand cutting direction and variable helix promotes smooth chip evacuation and reduces chatter. An HTA physical vapor deposition (PVD) coating improves heat and wear resistance during high-speed cutting. This tool is part of the STR440.2 series and is intended for use in precision CNC toolholders.

This end mill is suited for short-reach finishing and semi-finishing passes on ferrous and non-ferrous materials in vertical and horizontal machining centers. The centercutting geometry allows plunge milling entry without a pre-drilled hole. The straight-cylindrical shank with a 0.5-inch diameter fits standard ER and hydraulic toolholders. It is a strong fit for job shops, aerospace component machining, mold and die work, and general production environments where tight corner tolerances are required.

Key Features

• 0.030-inch corner radius reduces notch stress and improves corner finish quality
• HTA PVD coating provides elevated wear resistance and thermal protection
• Variable helix flute geometry reduces vibration and chatter during cutting
• Centercutting design allows direct plunge entry without pilot drilling
• Right-hand flute direction and right-hand cutting for standard spindle rotation
• STR440.2 series solid carbide construction for rigidity and dimensional stability

Compatibility

Designed for use with standard CNC toolholders accepting a 0.5-inch straight-cylindrical shank, including ER collet chucks and hydraulic toolholders.

Installation Notes

Installation should be performed by a qualified machinist or CNC operator. Ensure the spindle is fully stopped and the machine is in a safe state before mounting or removing tooling. Seat the shank fully into the toolholder to achieve maximum grip and minimize runout; this tool has a maximum TIR of 0.0005 inches. Always verify tool projection, runout, and cutting parameters in the machine controller before beginning a cut.
