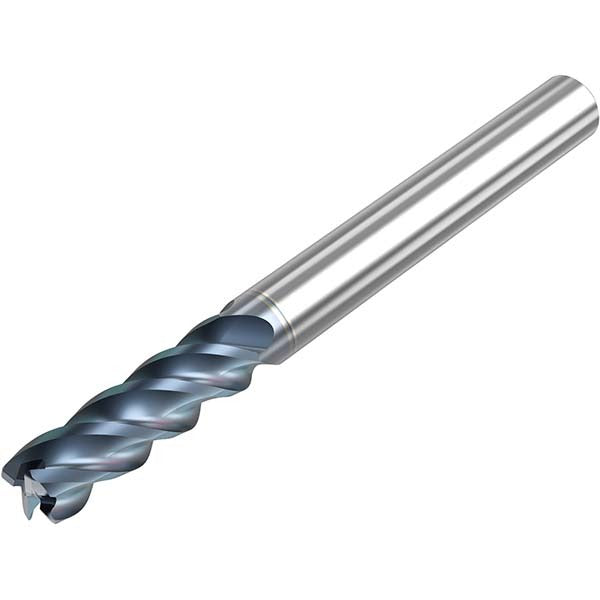

Seco 10008563 Corner Radius End Mill 3/16 in 4 Flute Carbide

Product Description

The SECO 10008563 is a solid carbide corner radius end mill designed for precision milling in metalworking and machining applications. It features a 3/16 inch (0.1875 inch) diameter with a 0.0100 inch corner radius and four flutes arranged in a right-hand spiral with a variable helix geometry. The variable helix helps reduce chatter and vibration during cutting, resulting in improved surface finish and tool life. An HTA PVD coating adds heat and wear resistance suited to high-speed operations. This end mill is single-end, centercutting, and designed for use in standard toolholders. It is installed and used by CNC machinists and tool-and-die professionals.

This end mill is suited for slot milling, profiling, and contouring operations in ferrous and non-ferrous materials where a radiused corner profile is required. The 9/16 inch length of cut (0.5625 inch) and 2 inch overall length make it appropriate for shallow-to-moderate depth applications in production and job-shop environments. The STR440.2 series designation identifies it within the SECO high-performance carbide end mill line. It is compatible with standard straight-cylindrical toolholders and collet chucks.

Key Features

• 0.0100 inch corner radius for consistent radiused edge profiles
• Variable helix flute geometry reduces chatter and improves surface finish
• HTA PVD coating for enhanced heat resistance and extended tool life
• Centercutting design allows direct plunge entry into workpiece material
• Right-hand cut and right-hand flute direction for standard CNC spindle compatibility
• TIR maximum of 0.0005 inch for tight runout tolerance

Compatibility

Designed for use with standard straight-cylindrical toolholders and collet chucks. Part of the SECO STR440.2 series of solid carbide corner radius end mills.

Installation Notes

Installation should be performed by a qualified CNC machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder is clean and free of debris before inserting the end mill. Use the appropriate collet or toolholder sized for a 3/16 inch shank diameter. Follow the machine manufacturer and toolholder manufacturer torque specifications when securing the tool, and verify runout with a dial indicator before beginning production cuts.
