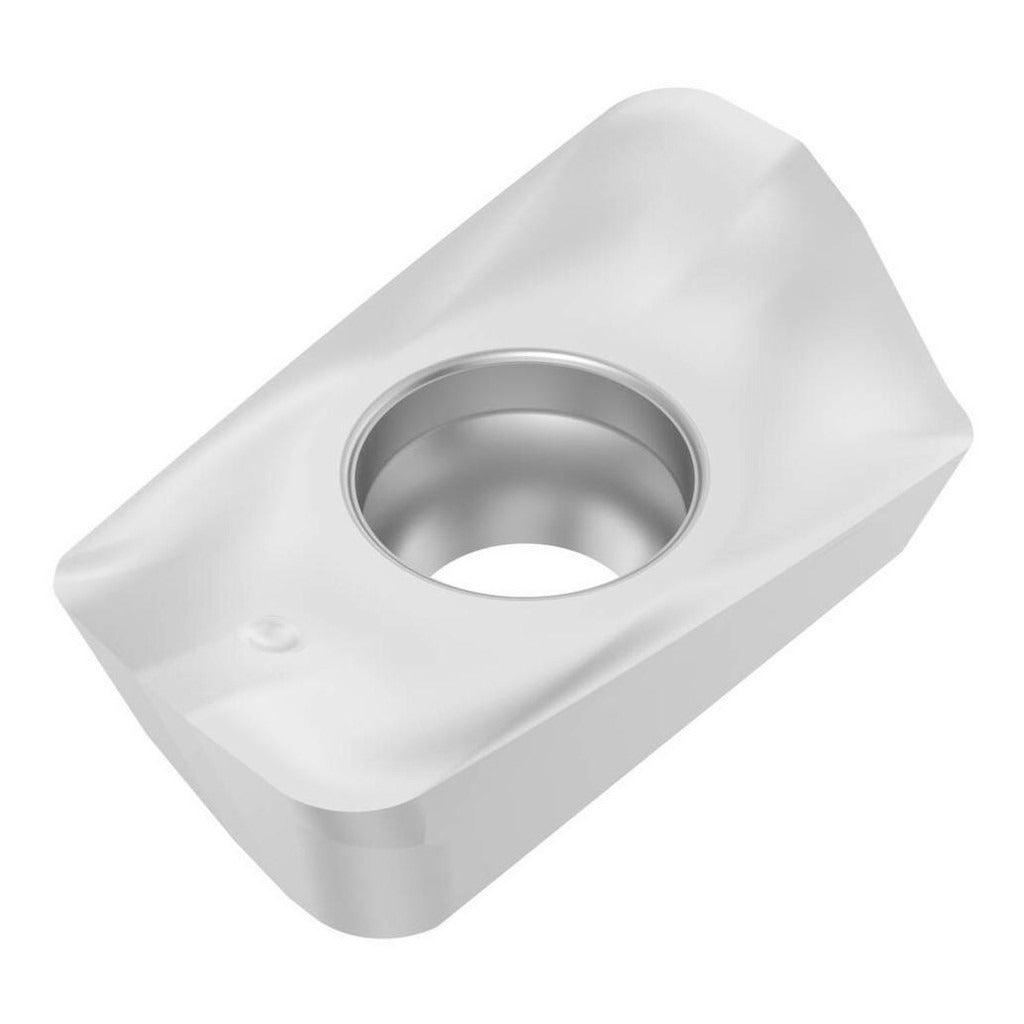

Seco 10000051 Milling Insert XOEX160516R-M09 MS2050

Product Description

The SECO 10000051 is a solid carbide milling insert carrying ANSI and ISO designation XOEX160516R-M09 in manufacturer grade MS2050. It is a single-sided, right-hand parallelogram-style insert designed for use in indexable milling cutters operating on superalloys, titanium, steel, and stainless steel. The insert features a PVD-applied TiAlN and NbN dual coating over a micrograin carbide substrate, a positive rake geometry at 14 degrees, and a honed cutting edge style. With 2 cutting edges and a corner radius of 0.0630 inches, it is well suited for demanding milling applications where edge security and heat resistance are critical.

This insert is intended for professional machining environments including aerospace, energy, and general metalworking shops. Its primary workpiece material designation is S (superalloys and titanium), with secondary compatibility across P (steel) and M (stainless steel) ISO material groups. The M09 chip breaker geometry is optimized for medium-depth milling passes. The insert is held in place by screw clamping and fits cutter series R217.69-XO16 and R220.69-XO16. It is installed and indexed by machinists and CNC tooling technicians working with indexable milling toolholders.

Key Features

• MS2050 micrograin solid carbide substrate with PVD TiAlN and NbN dual coating for elevated heat and wear resistance
• Positive rake angle of 14 degrees with honed cutting edge for reduced cutting forces on difficult materials
• XOEX parallelogram insert style with 90-degree included angle and right-hand orientation
• M09 chip breaker designed for medium milling depths in steel, stainless steel, superalloys, and titanium
• 2 cutting edges per insert with a maximum depth of cut of 0.6063 inches
• Compatible with R217.69-XO16 and R220.69-XO16 cutter series via screw holding method

Compatibility

Designed for use in cutter series R217.69-XO16 and R220.69-XO16 indexable milling systems. Fits XOEX-16 series toolholders using screw-clamp insert retention.

Installation Notes

Insert indexing and replacement should be performed by a qualified machinist or CNC tooling technician with the machine powered down and the spindle locked. Use the appropriate torx or hex key to the toolholder manufacturer's specified seating procedure when securing the clamping screw. Inspect the insert pocket and screw for wear or damage before seating a new insert. Do not exceed the cutter body's rated speed or depth-of-cut limits as specified by the toolholder manufacturer.
