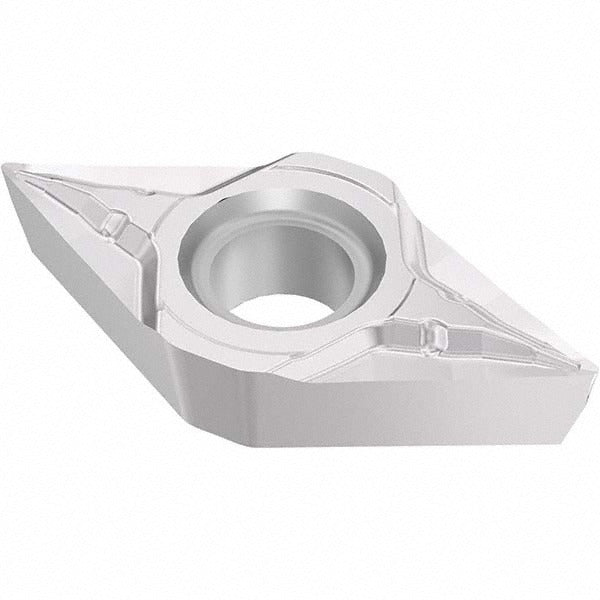

Seco 03276210 Turning Insert DCMT32.51-F1 TM2501 Carbide

Product Description

The SECO 03276210 is a DCMT-series turning insert designed for precision metal cutting in CNC and manual turning applications. Manufactured from solid carbide and CVD-coated with a Duratomic TiCN, Al2O3, and Cr multilayer finish, this insert is engineered to handle demanding cuts on stainless steel and steel workpieces. The F1 chip breaker geometry delivers a sharp cutting edge with a positive rake angle of 17 degrees, promoting clean chip formation and reduced cutting forces. The 55-degree diamond insert shape provides two cutting edges per insert, and the TM2501 grade is rated for material grades M25, M30, and M35. This insert is a practical choice for machinists and toolroom professionals working on production turning operations.

This insert is suited for a wide range of turning operations including back turning, boring, facing, and standard OD turning on stainless steel and steel components. It carries an ISO code of DCMT11T304-F1 and meets both ANSI and ISO standards, making it a straightforward swap for shops working from ISO tooling callouts. The neutral hand orientation makes it compatible with standard DCMT-style insert pockets. It is sold individually but requires a minimum order quantity of 10 units.

Key Features

• CVD Duratomic multilayer coating: TiCN, Al2O3, and Cr for wear resistance on stainless and steel
• 55-degree diamond insert shape with 2 cutting edges per insert
• F1 chip breaker geometry with sharp cutting edge and positive rake for reduced cutting forces
• Screw-held mounting with a 0.1772-inch hole diameter for secure pocket retention
• Maximum depth of cut of 0.3795 inches with an inscribed circle of 0.375 inches
• Meets ANSI and ISO standards; ISO designation DCMT11T304-F1

Compatibility

Designed for use in DCMT-style insert toolholders with screw-clamp holding. Primary workpiece material is stainless steel (ISO material code M); secondary application is steel (ISO material code P). Applicable material grades are M25, M30, and M35. Multi-use rated for back turning, boring, facing, and turning operations.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Ensure the machine spindle is fully stopped and the toolholder pocket is clean and free of debris before seating the insert. Secure the insert using the appropriate torx or hex key for the screw-clamp system per the toolholder manufacturer's specifications. Verify insert orientation and pocket fit before resuming cutting operations.
