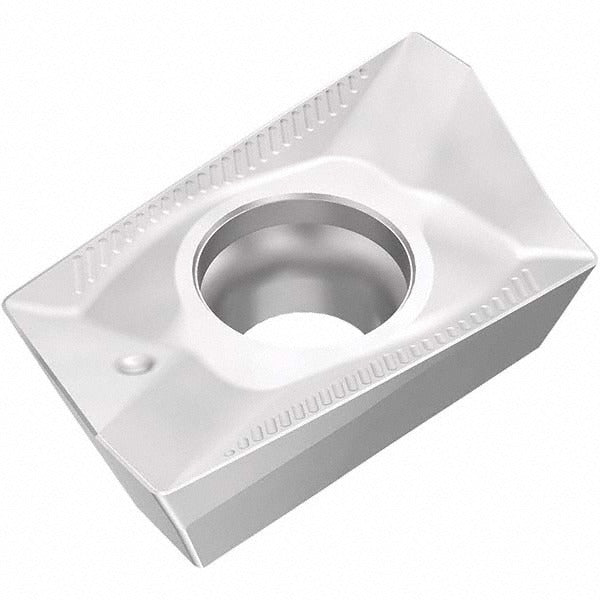

Seco 03272860 Milling Insert XOMX180604TR-ME13 MP2501

Product Description

The SECO 03272860 is a solid carbide milling insert carrying the ANSI/ISO designation XOMX180604TR-ME13 and manufactured grade MP2501. It features a parallelogram shape with a 90-degree included angle, a positive 25-degree rake angle, and a T-Land cutting edge style. The CVD-applied Duratomic coating — TiCN over Al2O3 — delivers thermal resistance and wear protection during aggressive milling. With two cutting edges, a right-hand orientation, and screw-type holding, this insert is designed for consistent, repeatable performance in production milling environments. A licensed machinist or CNC tooling technician installs this insert in compatible cutter bodies.

This insert targets steel as its primary workpiece material and carries secondary ratings for stainless steel, cast iron, superalloys, and titanium. It is suited to face milling, shoulder milling, and general-purpose milling operations in both job-shop and production environments. The ME13 chip breaker geometry is optimized for controlled chip formation across these material groups. Maximum depth of cut reaches 8.25 mm (0.3244 inches). It is compatible with SECO cutter series R217.69-18 and R220.69-18.

Key Features

• Solid carbide fine-grain substrate with CVD Duratomic TiCN plus Al2O3 coating for extended tool life
• Positive rake angle of 25 degrees reduces cutting forces on steel and stainless steel
• T-Land cutting edge style improves edge strength and resistance to chipping
• ME13 chip breaker controls chip evacuation across steel, cast iron, superalloys, and titanium
• Two cutting edges per insert maximize cost-per-edge value
• Right-hand, single-sided insert with screw-type holding for secure, repeatable seating

Compatibility

Compatible with SECO cutter series R217.69-18 and R220.69-18. Insert style XOMX, size code 180604, series XOMX-18.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Always power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torx or hex key to the cutter body manufacturer's specified procedure for screw-type insert retention. Inspect the insert pocket and seating surface for debris or damage before seating the new insert.
