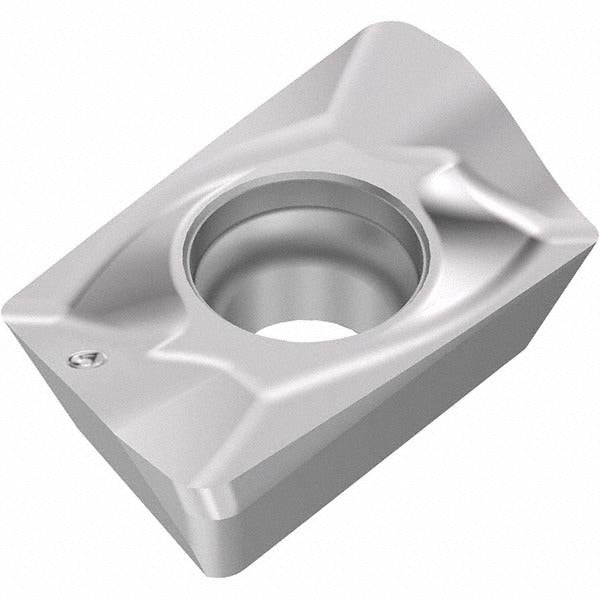

Seco 03272825 Milling Insert XOEX120408R-M07 MP2501

Product Description

The SECO 03272825 is a solid carbide milling insert carrying ANSI and ISO designation XOEX120408R-M07 in manufacturer grade MP2501. This right-hand, single-sided parallelogram insert measures 12.00 mm in length with a 5.03 mm thickness and an 8.20 mm inscribed circle diameter. It is manufactured using a CVD coating process and features a Duratomic TiCN plus Al2O3 multilayer coating for extended tool life. The positive rake geometry at 20.3 degrees and honed cutting edge style reduce cutting forces during face and shoulder milling operations. Screw-held mounting keeps the insert securely indexed in compatible cutter bodies. Licensed machinists and CNC milling operators install this insert class.

This insert is suited for milling operations on steel as the primary workpiece material, with secondary application to stainless steel, cast iron, superalloys, and titanium. It is designed for use in the SECO XOEX-12 series and is compatible with cutter bodies R217.69-12 and R220.69-12. The M07 chip breaker geometry is optimized for moderate to heavy chip loads encountered in production-volume face milling and shoulder milling on ferrous and difficult-to-machine alloys. Maximum depth of cut is 6.00 mm.

Key Features

• Solid carbide fine-grain substrate with CVD Duratomic TiCN plus Al2O3 coating for wear resistance on steel and stainless
• Positive 20.3-degree rake angle with honed cutting edge reduces cutting forces and heat buildup
• M07 chip breaker geometry handles moderate to heavy chip loads in ferrous and superalloy milling
• Right-hand cut, single-sided insert with screw holding method for secure, repeatable indexing
• Two cutting edges per insert; maximum depth of cut 6.00 mm
• Meets ISO standards; ANSI and ISO code XOEX120408R-M07

Compatibility

Designed for use with SECO cutter series R217.69-12 and R220.69-12. Insert style XOEX, size code 120408, series XOEX-12. Confirm cutter body pocket specification before installation.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Ensure the machine spindle is fully stopped and locked out before indexing or replacing inserts. Use the correct torque driver and insert screw specified by the cutter body manufacturer to avoid pocket or screw damage. Inspect the cutter body pocket seating surface for chips or debris before seating the insert.
