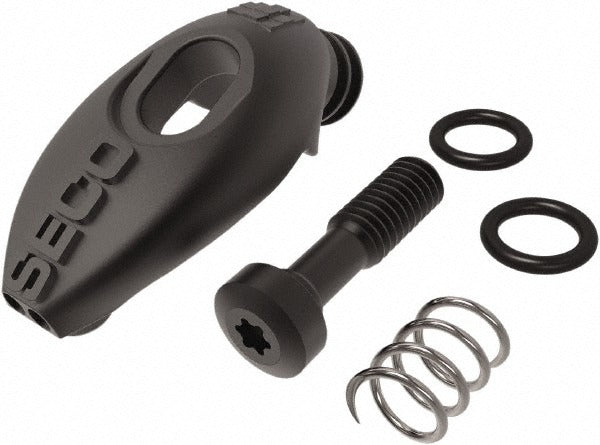

Seco 03219897 CN17 Coolant Clamp Set Indexable Toolholder

Product Description

The SECO 03219897 is a CN17-style coolant clamp set designed for indexable toolholder systems used in CNC turning and machining applications. This set delivers directed coolant flow to the cutting zone, improving chip control, extending insert life, and managing heat at the cutting edge. Weighing 0.22 pounds and measuring 2.64 inches in length by 2.64 inches in width by 1.02 inches in height, the set is compact and engineered for precision fitment. Installation is handled by machining technicians and CNC setup personnel as part of routine insert or toolholder servicing.

This coolant clamp set is suited for use on turning centers and CNC lathes equipped with compatible JETI-series toolholders. It supports both left-hand and right-hand cutting directions, making it applicable across a range of turning operations including external profiling and facing. The CN17 clamp style is part of the SECO CN series and is intended as a direct replacement or service component when refitting existing toolholder bodies. The manufacturer catalog number CN17L00R-2-SET identifies the set configuration.

Key Features

• CN17 clamp style for directed coolant delivery to the cutting edge
• Compatible with both left-hand and right-hand cutting directions
• Compact form factor: 2.64 inches long by 2.64 inches wide by 1.02 inches tall
• Sold as a set for complete clamp replacement in a single service event
• Part of the SECO CN series for consistent toolholder fitment

Compatibility

Designed for use with the following SECO JETI-series toolholder styles: C-DCLNR/L JETI, C-DWLNR/L JETI, CDSSNR/L JETI, DCLNR/L JETI, DSSNR/L JETI, and DWLNR/L JETI.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Before servicing the toolholder, ensure the machine spindle is powered down and all motion has ceased. Follow the toolholder manufacturer's assembly sequence when seating the clamp to avoid misalignment of the coolant passage. Do not overtighten clamping screws beyond the toolholder manufacturer's specified procedure.
