Seco 03197142 Shell Mill Holder CAT50 0.75 in Pilot

Product Description

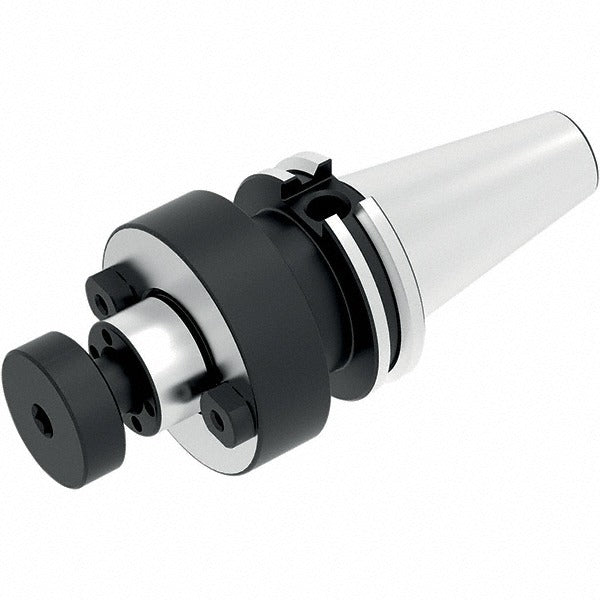

The SECO 03197142 is a CAT50 taper shank shell mill holder designed for secure, precise face milling operations on machining centers. It accepts shell mills through a 0.75 inch pilot diameter and features a 1.75 inch nose diameter flange interface. The holder measures 6.68 inches in overall length, with a 3.50 inch projection from flange to nose end. Through-coolant capability allows cutting fluid to be directed directly to the cutting zone, extending tool life and improving chip evacuation. Weighing 7.94 pounds, this holder is built for rigid, high-torque milling applications. Installation is performed by qualified machinists or toolroom personnel.

This shell mill holder is suited for use on vertical and horizontal machining centers equipped with CAT50 spindle interfaces. Typical applications include roughing and finishing passes on large workpieces in production and job-shop environments. The through-coolant feature makes it particularly effective in deep-pocket milling and high-feed operations where heat and chip buildup are concerns. It is used in aerospace, die and mold, heavy equipment, and general metalworking industries.

Key Features

• CAT50 taper shank for use with standard CAT50 spindle toolholders
• 0.75 inch pilot diameter for secure shell mill registration
• 1.75 inch nose diameter provides stable clamping interface
• 3.50 inch flange-to-nose projection for reach into fixtures and workholding setups
• Through-coolant design directs fluid to the cutting edge for improved tool life and chip control
• 6.68 inch overall length suits a range of machining center configurations

Compatibility

Designed as an OEM-style shell mill holder for machining centers with a CAT50 spindle interface. Compatible with shell mills requiring a 0.75 inch pilot and 1.75 inch nose diameter seating.

Installation Notes

Shell mill holders must be installed and removed by qualified machinists or toolroom technicians. Always power down and lock out the machining center spindle before changing toolholders. Use a calibrated torque wrench and the correct retention knob specification for your machine spindle when securing the holder. Inspect the taper shank and spindle bore for nicks, burrs, or contamination before seating the holder.
