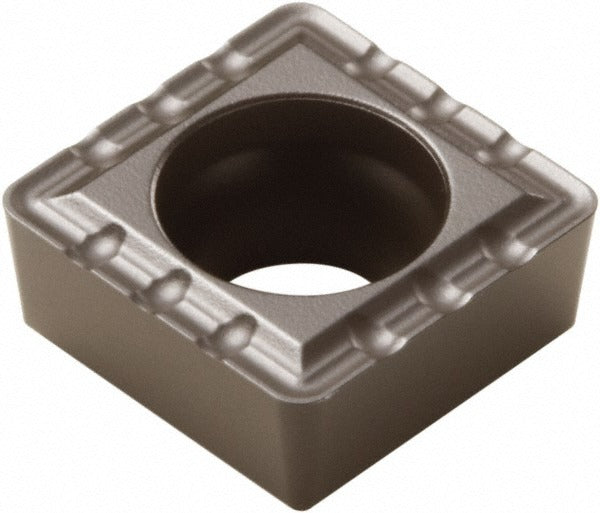

Seco 03136964 Indexable Drill Insert SCGX11P1 DP3000

Product Description

The SECO 03136964 is a carbide indexable drill insert designed for use with Perfomax series indexable drills. Manufactured to the SCGX11P1 insert style with Manufacturer Grade DP3000, this insert features a Duratomic coating process applied to a solid carbide substrate. The square 90-degree geometry and P1 chipbreaker are engineered for controlled chip formation across a wide range of workpiece materials. With an inscribed circle of 0.4531 inches and a 7-degree relief angle, this insert delivers consistent cutting performance in both left-hand and right-hand cutting directions. Licensed machinists and CNC operators in production and job-shop environments are the primary installers.

This insert is suited for drilling applications where universal material compatibility is required. The DP3000 grade with Duratomic coating supports cutting in workpiece material codes H, M, N, P, and S, covering hardened steels, stainless steels, non-ferrous metals, carbon steels, and heat-resistant superalloys. It is intended for use in production drilling operations on CNC machining centers and drill presses where indexable tooling systems are employed. Minimum order quantity is 10 units; each package contains 1 insert.

Key Features

• Solid carbide substrate with Duratomic coating for extended tool life
• DP3000 manufacturer grade rated for universal workpiece material compatibility (H, M, N, P, S codes)
• SCGX square geometry with 90-degree included angle and 7-degree relief angle
• P1 chipbreaker for controlled chip formation in varied materials
• Supports both left-hand and right-hand cutting directions
• Insert size code 11T308 fits standard Perfomax series drill bodies

Compatibility

Designed as a replacement indexable drill insert for Perfomax series drill bodies accepting SCGX11 insert size tooling. Compatible with workpiece material grades H, M, N, P, and S as specified in the product data.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before indexing or replacing inserts. Use the manufacturer-specified torx or hex key to seat the insert clamp screw to the correct seating without overtightening. Inspect the insert pocket and seating surface for debris or damage before installing a new insert.
