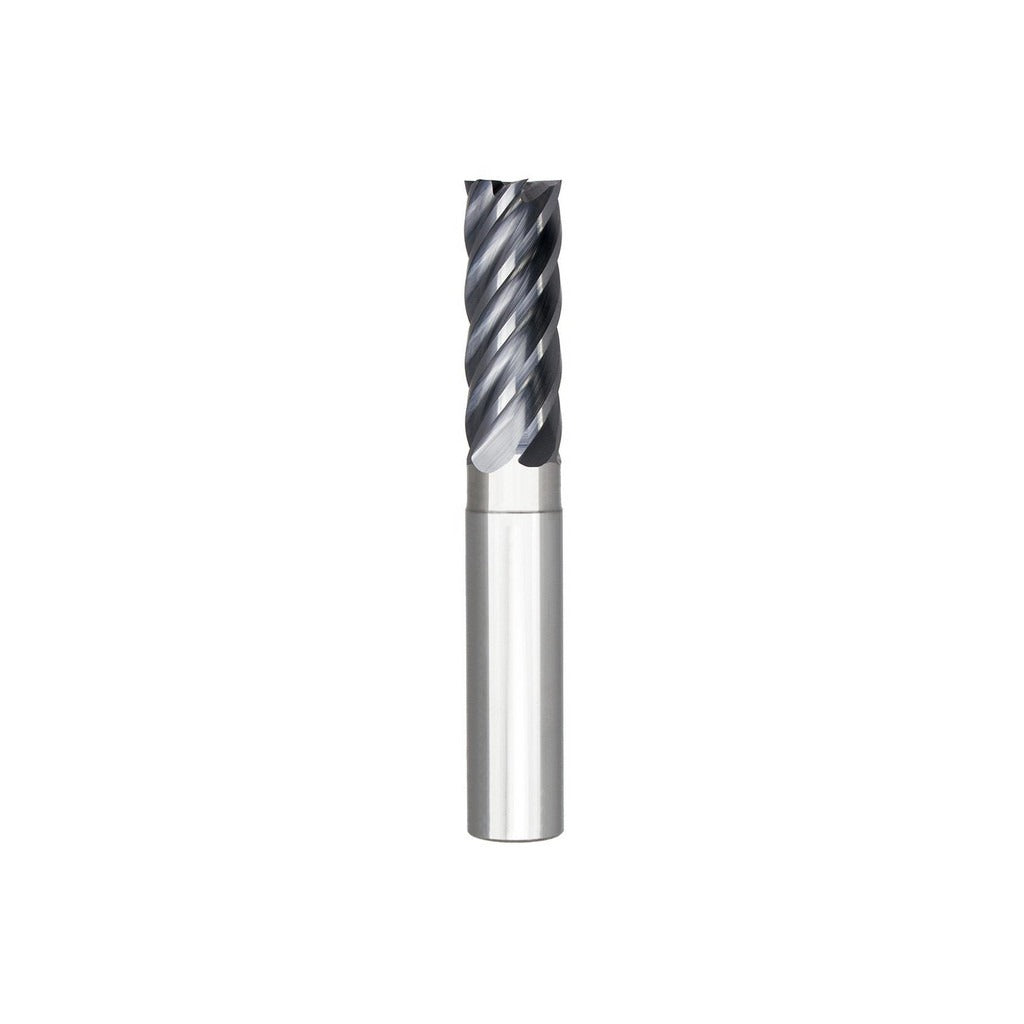

Seco 03115958 Square End Mill 0.5in 6 Flute Altin Carbide

Product Description

The SECO 03115958 is a solid carbide square end mill designed for high-performance milling in demanding machining environments. Built on the SN638 series platform, this single-end tool features a 0.5 inch diameter cutting profile, a 1.125 inch length of cut, and a 4 inch overall length. The micrograin carbide substrate and AlTiN coating make it well-suited for dry or high-speed cutting applications where heat resistance and edge retention are critical. Six spiral flutes with a variable helix geometry improve chip evacuation and reduce chatter across a range of workpiece materials.

This end mill is used in CNC machining centers and manual knee mills for slotting, profiling, and peripheral milling operations. The extended reach configuration, with a 2 inch reach length and straight cylindrical 0.5 inch shank, accommodates deeper cavity work where standard-reach tools fall short. The right-hand cut, right-hand flute orientation is the standard configuration for conventional CNC setups. It is installed and applied by machinists and CNC operators in job shops, aerospace, die-mold, and general metalworking applications.

Key Features

• AlTiN coating provides high heat resistance for dry and high-speed cutting
• Variable helix flute design reduces harmonics and vibration during cutting
• Micrograin solid carbide substrate for improved wear resistance and edge sharpness
• Extended reach geometry with 2 inch reach length for deep-cavity access
• Center-cutting capable for direct plunge entry into workpiece material
• Six flutes for improved surface finish and feed rate capability

Compatibility

Designed as an OEM-style replacement or direct application tool for CNC machining centers and milling machines accepting a 0.5 inch straight cylindrical shank collet or end mill holder.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Secure the shank fully into a properly sized collet or end mill holder and torque the retention nut to the machine tool manufacturer's specification. Verify runout with a dial indicator before beginning a cut. Always confirm spindle speed and feed rate are appropriate for the workpiece material and coating type before engaging the cut.
