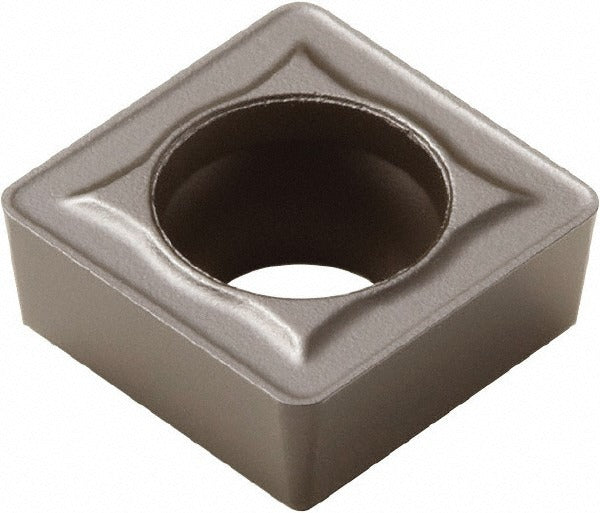

Seco 03097761 SCGX11P2 DP2000 Carbide Indexable Drill Insert

Product Description

The SECO 03097761 is a square, 90-degree indexable drill insert designed for use in Perfomax series indexable drills. Built from solid carbide and finished with a Duratomic coating process, this insert carries the DP2000 manufacturer grade and is engineered for productive metal cutting in demanding production environments. The SCGX insert style features a 7-degree relief angle and a P2 chipbreaker geometry, which work together to control chip formation and reduce cutting forces. With an inscribed circle of 0.4531 inches and insert size code 11T308, this insert fits standard Perfomax toolholders. Licensed machinists and CNC tooling technicians are the primary installers.

This insert is rated for use on cast iron and steel workpieces, covering material grade classifications C2 and C3 with primary workpiece material codes K and P. It suits both left-hand and right-hand cutting directions, giving it flexibility across different machine setups. Typical applications include deep-hole drilling, through-hole drilling, and high-feed drilling operations in production machining environments such as job shops, aerospace component manufacturing, and automotive part machining where consistent chip control and tool life are priorities.

Key Features

• Solid carbide substrate with Duratomic coating process for wear resistance on steel and cast iron
• DP2000 grade optimized for primary workpiece materials cast iron and steel
• P2 chipbreaker geometry for controlled chip evacuation in drilling operations
• Square 90-degree insert shape with 7-degree relief angle for reduced cutting forces
• Compatible with both left-hand and right-hand cutting directions
• Insert size 11T308 with 0.4531-inch inscribed circle fits standard Perfomax toolholders

Compatibility

Designed for use with SECO Perfomax series indexable drill bodies accepting SCGX insert style, insert size 11T308, with a 0.4531-inch inscribed circle diameter.

Installation Notes

Installation is performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine spindle before seating or indexing inserts. Use the correct torx or hex key specified for the Perfomax toolholder pocket screw to avoid stripping the clamp screw. Inspect the insert pocket seating surface for chips or debris before installing a new insert to ensure proper seating and accurate cutting geometry.
