Seco 03096358 Turning Insert DCMT11T302-F1 TP3501 Diamond 55

Product Description

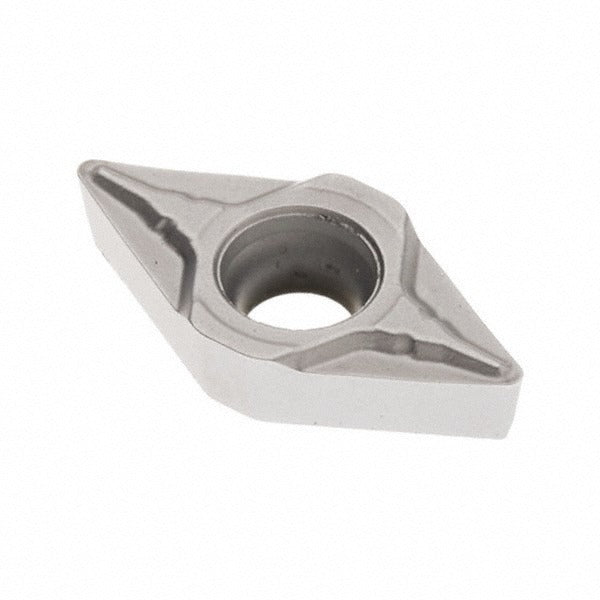

The SECO 03096358 is a DCMT-style indexable turning insert designed for precision metal cutting in CNC turning applications. It carries the ISO designation DCMT11T302-F1 and is manufactured to grade TP3501 with a Duratomic CVD-applied multilayer coating of TiCN, Al2O3, and Cr. The insert features a 55-degree diamond shape, a 0.3750-inch inscribed circle, a 0.20 mm (0.0079 inch) corner radius, and a sharp F1 chip breaker geometry with a positive rake. It is held in the toolholder via screw clamp and provides 2 cutting edges per insert. Licensed machinists and CNC setup technicians install this insert in production and job-shop turning environments.

This insert is suited for external turning, facing, boring, and back turning operations. Its primary workpiece material is steel (ISO material code P), covering material grades P20, P30, and P40. It also performs on stainless steel (ISO material code M). The F1 chip breaker geometry is optimized for finishing to light roughing passes on these materials. The Duratomic coating process is engineered to extend tool life and maintain edge integrity at elevated cutting speeds typical of modern CNC lathes.

Key Features

• Duratomic CVD multilayer coating: TiCN, Al2O3, and Cr for wear resistance on steel and stainless steel
• 55-degree diamond insert shape (Shape Code D) with 7-degree relief angle and positive rake
• F1 chip breaker with sharp cutting edge geometry for controlled chip formation
• Screw-clamped holding method compatible with DCMT-style toolholders
• 2 usable cutting edges per insert — neutral hand, suitable for both right- and left-hand setups
• Multi-use application: turning, facing, boring, and back turning in a single insert style
• Conforms to ANSI and ISO standards; ISO code DCMT11T302-F1, Industry Standard Number DCMT32.50.5-F1

Compatibility

Designed for use in DCMT-style screw-clamp turning toolholders conforming to ANSI and ISO insert seating standards. Compatible workpiece materials include steel (P20, P30, P40) and stainless steel as defined by ISO material codes P and M.

Installation Notes

Installation is performed by licensed machinists or CNC tooling technicians. Power down and lock out the machine spindle before indexing or replacing the insert. Use the appropriate Torx or hex key to secure the clamping screw to the toolholder manufacturer's specified procedure — do not overtighten, as carbide inserts are brittle and can fracture under excessive clamp force. Verify correct seating of the insert in the pocket before resuming cutting operations.
