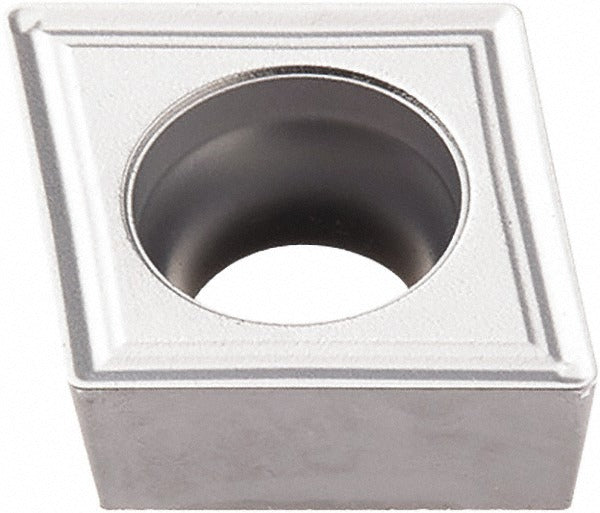

Seco 03095444 CCMT09T308-M3 TP3501 Carbide Turning Insert

Product Description

The SECO 03095444 is a CCMT-series indexable turning insert designed for metal cutting operations including boring, facing, and turning. Manufactured from solid carbide with a CVD-applied Duratomic multilayer coating of TiCN, Al2O3, and Cr, this insert is built for productive cutting in steel and stainless steel applications. It features an 80-degree diamond shape, a neutral hand orientation, and a chamfered and honed cutting edge style. With a 3/8-inch inscribed circle and a 1/32-inch corner radius, the 03095444 suits moderate to heavy stock removal across P20, P30, and P40 material grades. Installation is handled by licensed machinists and toolroom technicians using standard screw-clamp toolholders.

This insert is intended for CNC and manual lathe applications in both production and job-shop environments. Primary workpiece material is steel, with a secondary rating for stainless steel. The M3 chip breaker geometry supports a broad range of depths of cut and feed rates in general turning, facing, and boring contexts. The insert complies with ANSI and ISO standards and carries the ISO designation CCMT09T308-M3 along with the industry standard number CCMT32.52-M3, making toolholder selection straightforward for shops already working within those systems.

Key Features

• CVD Duratomic multilayer coating: TiCN, Al2O3, and Cr for wear resistance in steel and stainless cutting
• M3 chip breaker geometry supports boring, facing, and turning in a single insert style
• 80-degree diamond insert shape with positive rake for reduced cutting forces
• Chamfered and honed cutting edge for edge strength and surface finish consistency
• Screw-clamp holding method compatible with standard CCMT toolholders
• 2 cutting edges per insert; multi-use capable across multiple operation types
• Meets ANSI and ISO standards; ISO code CCMT09T308-M3

Compatibility

Designed for use in standard screw-clamp CCMT toolholders conforming to ANSI and ISO CCMT09T308 specifications. Suitable for P20, P30, and P40 steel grades and stainless steel workpieces. Verify toolholder pocket geometry and clamp style before installation.

Installation Notes

This insert is installed and indexed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before indexing or replacing inserts. Use the correct torque driver for the clamp screw to avoid insert movement or screw damage — refer to the toolholder manufacturer specifications for the appropriate screw torque. Inspect the toolholder pocket and seating surface for chips or wear before seating a new insert.
