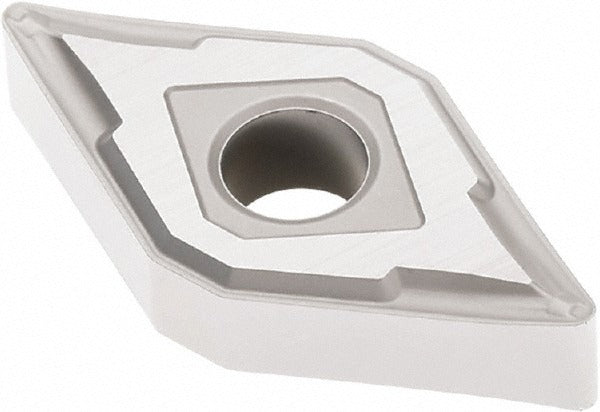

Seco 03094146 Turning Insert DNMP431-MF2 TP3501 Carbide

Product Description

The SECO 03094146 is a DNMP431-MF2 series solid carbide turning insert designed for precision metal cutting on CNC lathes and turning centers. It carries a TP3501 grade designation with a CVD-applied Duratomic multilayer coating of TiCN, Al2O3, and Cr, engineered to extend tool life under demanding cutting conditions. The insert features a 55-degree diamond shape, a neutral hand orientation, a 0.5 inch inscribed circle, and a 1/64 inch corner radius. With four available cutting edges and an MF2 chip breaker geometry, it delivers consistent chip control during finish and semi-finish operations on steel and stainless steel workpieces.

This insert is suited for medium to heavy turning applications in production and job-shop environments. Its primary target material is steel, with secondary suitability for stainless steel, aligning with ISO material codes P and M. Rated material grades include P20, P30, and P40. The MF2 chip breaker geometry supports back turning, boring, facing, and standard longitudinal turning. It is typically installed by machinists and CNC operators on toolholders accepting DNMP-style inserts with clamp, pin, or lever lock holding methods.

Key Features

• TP3501 grade with CVD Duratomic TiCN and Al2O3 multilayer coating for extended wear resistance
• 55-degree diamond insert shape with neutral hand for versatile setup flexibility
• MF2 chip breaker geometry supports back turning, boring, facing, and turning
• Four cutting edges per insert for reduced per-edge tooling cost
• Chamfered and honed cutting edge style for stable entry and reduced chipping
• Compatible with clamp, pin, and lever lock toolholder holding methods
• Meets ANSI and ISO standards; ISO equivalent code DNMG150404-MF2

Compatibility

Designed for DNMP-style toolholders using clamp, pin, or lever lock holding methods. Suitable for steel (P20, P30, P40) and stainless steel workpiece materials per ISO material codes P and M. ISO equivalent insert code is DNMG150404-MF2. Minimum order quantity is 10 pieces.

Installation Notes

Installation is performed by qualified machinists or CNC operators. Ensure the machine spindle is fully stopped and the toolholder is secure before seating or indexing the insert. Inspect the insert pocket and clamping components for wear or debris before installation. Follow the toolholder manufacturer's recommended clamping procedure for DNMP-style inserts to ensure proper seating and edge engagement.
