Seco 03094138 Turning Insert CNMG432-MF3 TP3501 Carbide

Product Description

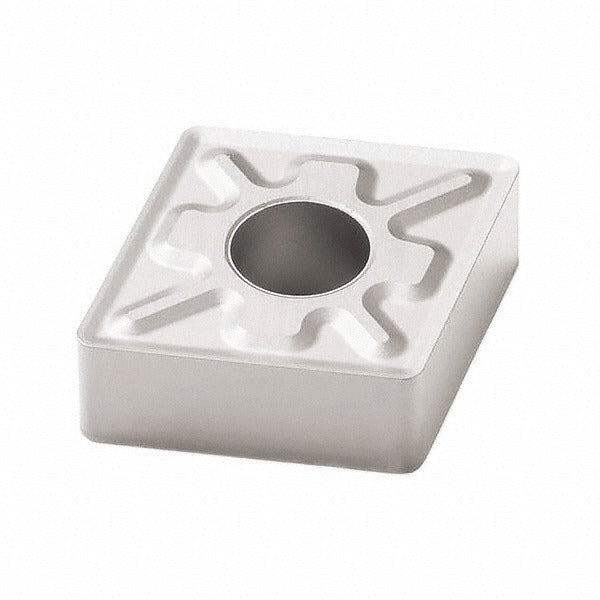

The SECO 03094138 is a CNMG432-MF3 indexable turning insert in grade TP3501, designed for general-purpose metal cutting on CNC lathes and turning centers. The insert features a CVD-applied Duratomic multilayer coating — TiCN, Al2O3, and Cr — over a solid carbide substrate, delivering thermal resistance and wear life on steel and stainless steel applications. The 80-degree diamond shape (insert shape code C) provides a strong cutting edge geometry, and the MF3 chip breaker is optimized for medium finishing passes. With a 0.5-inch inscribed circle and 4 usable cutting edges per insert, this is a standard production turning insert suited for high-volume turning operations.

This insert is intended for CNC turning operations including facing, boring, and longitudinal turning on steel (ISO P) and stainless steel (ISO M) workpieces. The MF3 chip breaker geometry suits medium feed rates and moderate depths of cut, making it a practical choice for finishing and semi-finishing in production machining environments. It is sized and toleranced to ANSI and ISO standards, carrying the ISO designation CNMG120408-MF3. Machinists and CNC operators working on P20, P30, and P40 material grades will find this insert a direct fit for standard CNMG toolholders.

Key Features

• Duratomic CVD multilayer coating (TiCN, Al2O3, Cr) for extended tool life on steel and stainless
• MF3 chip breaker geometry suited for medium finishing and semi-finishing cuts
• 4 cutting edges per insert maximize cost-per-edge value in production runs
• Chamfered and honed cutting edge style balances edge strength and surface finish quality
• Negative rake, 0-degree relief angle (clearance code N) for heavy interrupted and continuous cuts
• Compatible with clamp, pin, and lever-lock insert holding methods
• Meets ANSI and ISO standards; ISO equivalent CNMG120408-MF3

Compatibility

Designed for use in standard CNMG-style toolholders that accept a 0.5-inch inscribed circle, 3/16-inch thick diamond insert with a 0.2028-inch hole diameter. Suitable for turning, facing, and boring of steel (material grade P20, P30, P40) and stainless steel workpieces.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Power down and lock out the machine spindle before indexing or replacing inserts. Seat the insert fully against the toolholder pocket and verify clamp, pin, or lever-lock engagement before resuming cuts. Always inspect the pocket seat for chips or debris that could cause insert rock and premature edge failure.
