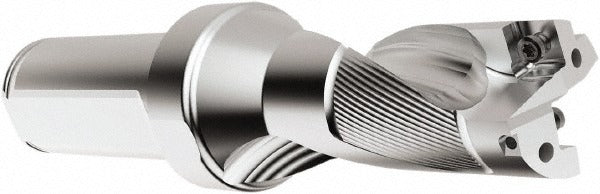

Seco 03080769 Indexable Insert Drill 2in 4in Depth 2xd

Product Description

The SECO 03080769 is a 2-inch diameter indexable insert drill designed for general-purpose drilling operations in metal-cutting applications. Built to a 2xD depth-to-diameter ratio, it delivers a maximum drill depth of 4 inches with right-hand cutting direction. The body is constructed from steel and accepts two indexable inserts in SPGX or SCGX styles, size codes 1504 and 150512. Coolant is delivered through an axial concentric entry port, supporting chip evacuation and tool life at depth. The drill is part of the SD522 series and measures 7.806 inches in overall length with a 4.197-inch flute length.

This indexable drill is suited for production and job-shop environments where through-hole and blind-hole drilling in steel, cast iron, or similar materials is required. The Weldon Flat and Flange shank configuration provides positive drive and reduces slippage under cutting loads. It is installed in CNC machining centers, horizontal boring mills, and lathe turrets capable of accepting a 1.5-inch straight shank. The SD522 series is a general-purpose platform used by machinists and tooling technicians across a broad range of drilling applications.

Key Features

• 2-inch maximum drill diameter with 2xD depth-to-diameter ratio for balanced rigidity and reach
• Accepts two indexable inserts — compatible with SPGX1504 and SCGX150512 insert styles
• Axial concentric coolant-through design supports chip flushing and insert cooling at depth
• Weldon Flat and Flange shank for positive rotational drive in power toolholders
• Right-hand cutting direction; general-purpose tool performance rating
• Steel body construction with modular connection size R7

Compatibility

Compatible with SD522 drill style toolholders. Accepts SPGX1504 and SCGX150512 indexable inserts secured with insert lock screws C04011-T15P and C05012-T15P. Requires a toolholder or spindle capable of accepting a 1.5-inch straight shank with Weldon Flat and Flange interface.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician. Ensure the machine spindle is fully powered down and locked out before mounting or removing the drill body. Verify insert seating and lock screw torque according to the insert manufacturer guidelines before initiating a cut. Confirm coolant supply lines are connected and flow is verified prior to running the tool at depth.
