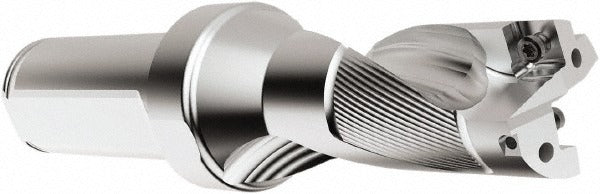

Seco 03080730 Indexable Insert Drill 1-1/8 in 2xd

Product Description

The SECO 03080730 is a PerfoMAX series indexable insert drill designed for general-purpose drilling operations in metal fabrication, machining, and industrial environments. It accepts two indexable inserts and delivers a maximum drill diameter of 1-1/8 inches with a maximum drill depth of 2-1/4 inches at a 2xD depth-to-diameter ratio. The straight cylindrical shank measures 1-1/4 inches in diameter, providing secure tool holding in standard drill chucks and holders. Built from steel, this drill body is installed and serviced by machinists and CNC operators in production or job-shop settings.

The 03080730 is suited for general-purpose drilling in a variety of workpiece materials where a reliable, repeatable indexable insert platform is required. The PerfoMAX series is engineered for through-coolant capability, making it appropriate for high-efficiency drilling cycles in machining centers and lathes. Compatible insert styles include SCGX and SPGX in size codes 0903 and 09T308, allowing flexibility in insert selection based on material and finish requirements. This drill is a right-hand cutting tool intended for standard rotational drilling applications.

Key Features

• 1-1/8 inch maximum drill diameter with 2xD depth-to-diameter ratio for controlled chip evacuation
• Accepts two indexable inserts in SCGX or SPGX styles, size codes 0903 and 09T308
• Through-coolant capability for improved tool life and chip flushing in high-cycle applications
• Straight cylindrical shank with 1-1/4 inch diameter fits standard toolholding systems
• Right-hand cutting direction; steel body construction for rigidity
• Modular connection size R7 for compatible modular tooling interfaces

Compatibility

Compatible with insert styles SCGX and SPGX in size codes 0903 and 09T308. Designed for use with the SD522 compatible drill style within the SECO PerfoMAX series platform.

Installation Notes

Installation and insert indexing should be performed by a qualified machinist with the machine powered down and locked out per applicable safety procedures. Use calibrated torque tools when seating insert screws to avoid damaging the pocket or insert. Verify shank and holder bore compatibility before mounting. Coolant lines should be confirmed clear and properly connected before resuming through-coolant operation.
