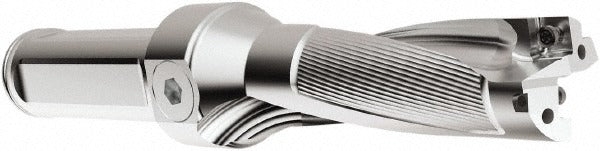

Seco 03080496 Indexable Insert Drill 3/4 in 3xd

Product Description

The SECO 03080496 is an indexable insert drill from the PerfoMAX series, designed for general-purpose drilling operations in metal fabrication and machining environments. It accepts two indexable inserts and delivers a maximum drill diameter of 0.7500 inches (19.97 mm) with a maximum drill depth of 2-1/4 inches, representing a 3xD depth-to-diameter ratio. The straight cylindrical shank measures 1 inch in diameter and 2.75 inches in length. Coolant-through capability supports chip evacuation and tool life in production drilling. This drill body is installed by machinists and tooling technicians working on CNC machining centers and manual drilling equipment.

This indexable drill body is suited for general-purpose drilling in production and job-shop environments where consistent hole quality and insert replaceability are priorities. The PerfoMAX platform is built for right-hand cutting operations. Compatible insert styles include SCGX and SPGX geometries, with compatible insert size codes 050204 and 0602. The SPGX0602 insert series is a direct fit. Applications range from through-hole and blind-hole drilling in ferrous and non-ferrous materials to high-volume production runs where insert indexing reduces downtime.

Key Features

• 3/4 inch (0.7500 in) maximum drill diameter with 3xD depth-to-diameter ratio
• Accepts 2 indexable inserts — compatible with SCGX and SPGX insert styles
• Coolant-through design aids chip evacuation and extends insert life
• Straight cylindrical shank, 1 inch diameter, for broad machine tool compatibility
• Steel tool body construction for rigidity in demanding drilling applications
• Modular connection size R7-C for compatible tooling systems

Compatibility

Compatible with drill style SD523. Takes SCGX and SPGX insert styles in size codes 050204 and 0602, including the SPGX0602 insert series. Modular connection size is R7-C.

Installation Notes

Installation and insert indexing should be performed by qualified machinists or tooling technicians. Power down and lock out the machine spindle before changing inserts or mounting the drill body. Use calibrated torque tools per the insert screw manufacturer specifications when seating inserts — do not overtighten by hand. Verify shank seating depth and runout with a dial indicator before initiating a drilling cycle.
