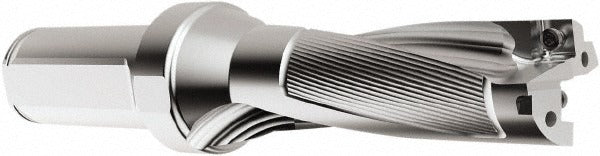

Seco 03080494 Indexable Insert Drill 18.01mm 3xd

Product Description

The SECO 03080494 is a PerfoMAX series indexable insert drill designed for general-purpose drilling applications in metal and machined components. It accepts two indexable inserts and delivers a 3xD depth-to-diameter ratio, with a maximum drill depth of 54.1 mm and a drill diameter of 18.01 mm (0.709 inches). The body is constructed from steel with a straight cylindrical shank measuring 1 inch in diameter. Coolant-through capability supports chip evacuation and tool life in production drilling environments. This drill is installed and operated by machinists and tool-and-die professionals on CNC machining centers and manual drill presses.

The 03080494 is suited for general-purpose drilling in manufacturing and job-shop environments, including automotive, aerospace, and general metalworking applications. Its PerfoMAX series designation places it in a line engineered for stable insert seating and consistent hole quality. The drill accepts compatible insert styles SCGX and SPGX, with compatible insert size codes 050204 and 0602. The modular connection size is R7, and the right-hand cutting direction is standard for conventional spindle rotation.

Key Features

• 3xD drill depth-to-diameter ratio with 54.1 mm maximum drill depth
• Accepts two indexable inserts — compatible styles SCGX and SPGX (size codes 050204 and 0602)
• Coolant-through design for improved chip evacuation and extended insert life
• 1-inch straight cylindrical shank for broad machine compatibility
• Steel body construction for rigidity in production drilling
• R7 modular connection size

Compatibility

Compatible with drill insert style SD523. Accepts indexable insert styles SCGX and SPGX in size codes 050204 and 0602, including insert designation SPGX0602. Modular connection size R7.

Installation Notes

Installation is performed by qualified machinists or tooling technicians. Ensure the machine spindle is fully powered down and at a complete stop before mounting or removing the drill body. Verify insert seating and screw torque per the toolholder manufacturer guidelines before initiating a cut. Confirm coolant-through lines are clear and delivering adequate flow before running at full feed and speed.
